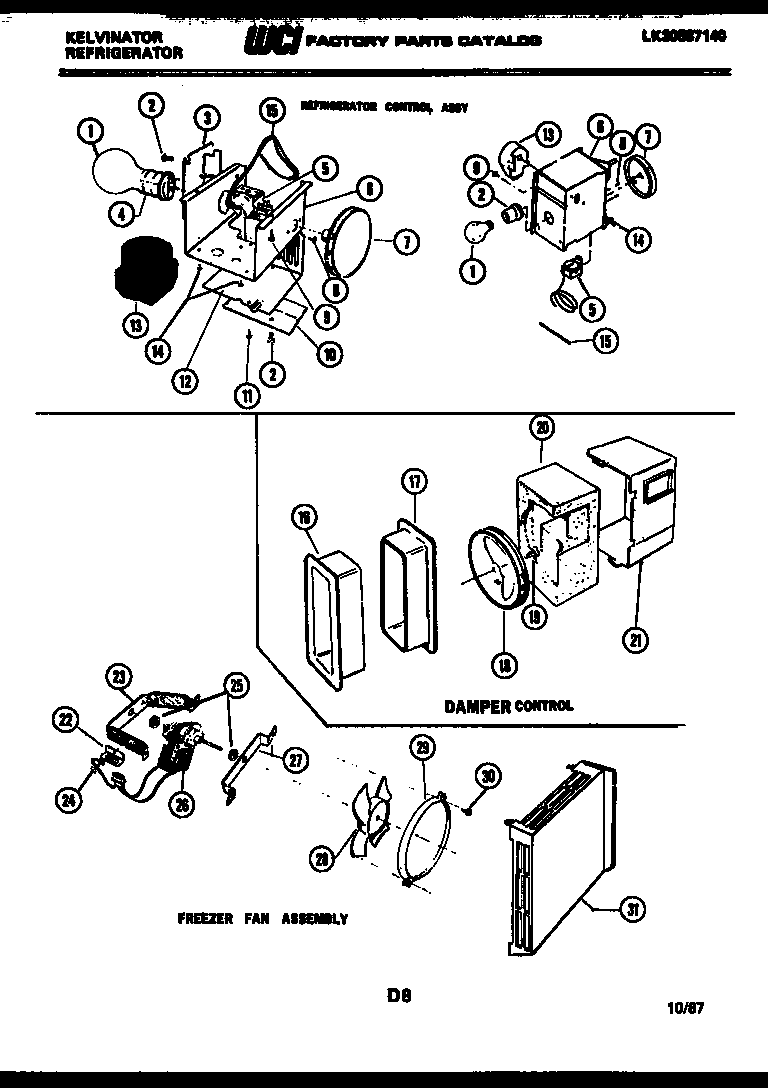

FSK190EN1T 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

FSK190EN1T 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Written by

in

FSK190EN1T 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

PositionProduct
1316538904 Frigidaire Oven Lamp Light
4SOCKET LIGHT
5WCI G162667-07
6WCI G189359
7WCI G164906-01
8WCI G107080
95304455852 Frigidaire Refrigerator Screw
13215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
145304455649 Frigidaire Refrigerator Screw
15TUBE
16WCI G166802
17AWCI G167582
17WCI G166803
18KNOB, DAMPER CONT.
19WCI G185373
20WCI G164575
21WCI G164523
22WCI G164571
23WCI G185303
245304455651 Frigidaire Refrigerator Screw
25G187559 Frigidaire Refrigerator Bushing
25AWCI G162703
265300158289 Frigidaire Evaporator Fan Motor
27WCI G185302
285308000010 Frigidaire Refrigerator Evaporator Fan Blade
29RING, FAN ORIFICE
305304455650 Frigidaire Refrigerator Screw
31WCI G164654-01
