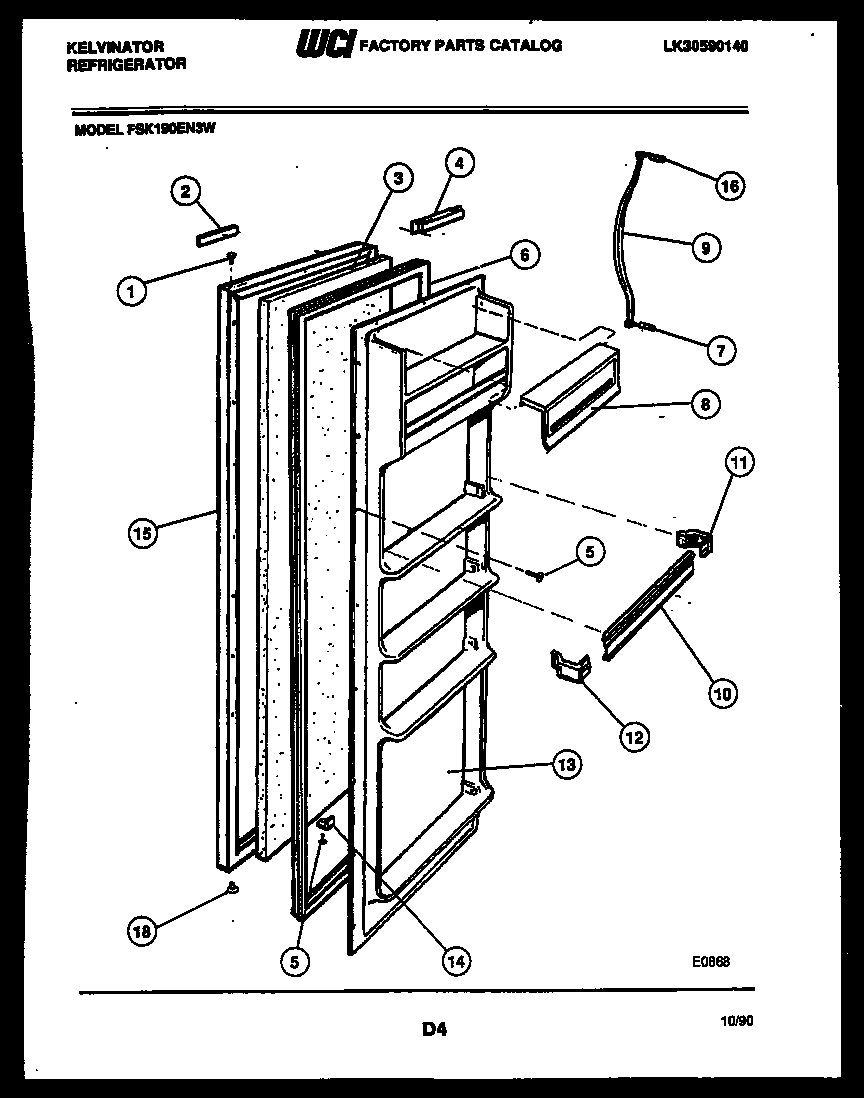

FSK190EN3D 03 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	BEARING-HINGE
2	NAMEPLATE-ASSY
3	INSULATION-BULK (NON-ILLUSTRATED)
4A	WCI 3001020
4	WCI 5303200272
5	218843801 Frigidaire Refrigerator Screw
6	WCI 5303201811
7	HANDLE, END-BOTTOM
8	WCI G164731-17
9	HANDLE – DOOR
10	WCI G161019-81
11	SUPPORT – RACK RH (6)
12	SUPPORT – RACK LH (6)
13	WCI G166897-03
14	WCI 5308000790
15A	WCI 5315230801
15	PANEL – EXTERIOR – ALMOND
16E	ANCHOR – NUT (2) (NON-ILLUSTRATED)
16C	SPACER-HANDLE (2) (NON-ILLUSTRATED)
16A	INSERT – HANDLE (NON-ILLUSTRATED)
16	HANDLE END-TOP
16B	SCREW (6)
16D	WCI 5308011745
18	WCI 5303001022
