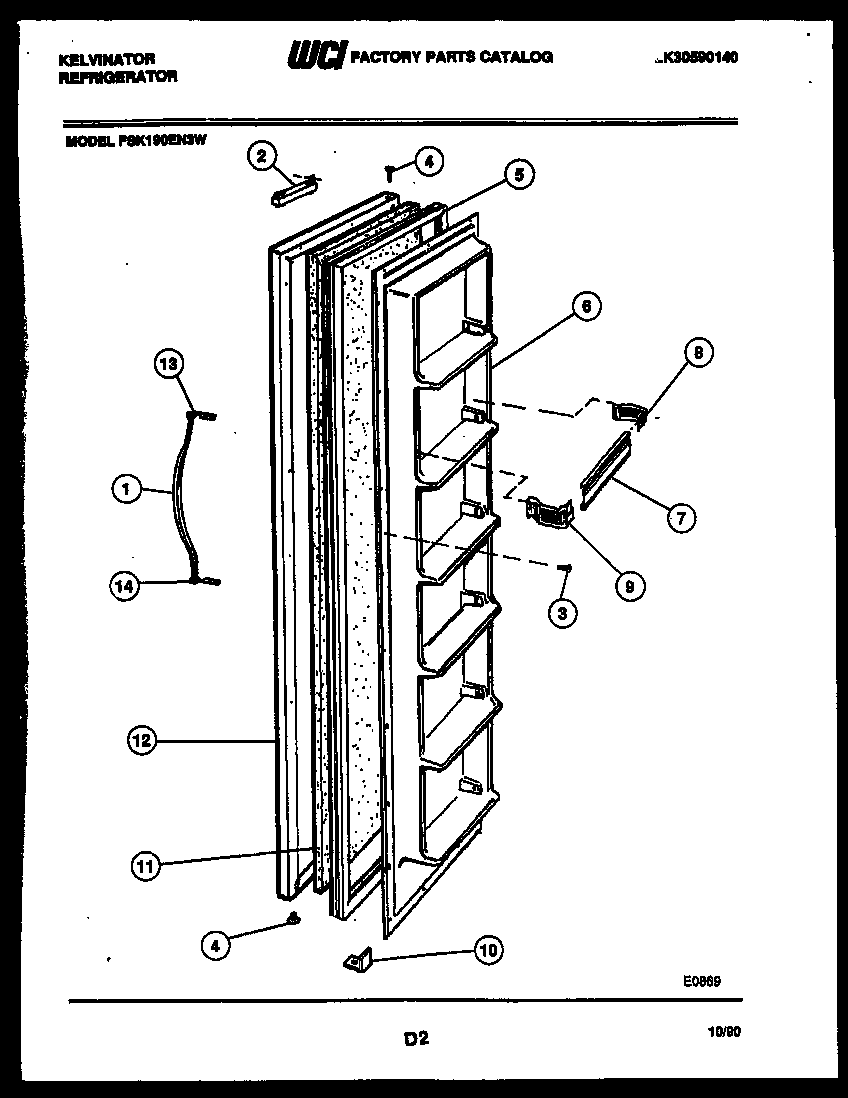

FSK190EN3F 02 – FREEZER DOOR PARTS

Products

Position	Product
1	HANDLE – DOOR
2A	WCI 3001020
2	WCI 5303200272
4	BEARING-HINGE
5	WCI 5303200474
6	WCI G166891-03
7	WCI G161019-82
8	SUPPORT – RACK RH (6)
9	SUPPORT – RACK LH (6)
10	WCI 5308000790
10A	218843801 Frigidaire Refrigerator Screw
11	INSULATION-BULK (NON-ILLUSTRATED)
12A	WCI 5315230801
12	PANEL – EXTERIOR – COFFEE
13	HANDLE, END-BOTTOM
14	HANDLE END-TOP
14B	SCREW (6)
14A	INSERT – HANDLE (NON-ILLUSTRATED)
14C	SPACER-HANDLE (2) (NON-ILLUSTRATED)
14D	ANCHOR – NUT (2) (NON-ILLUSTRATED)
14E	WCI 5308011745
15	WCI 5303001022
