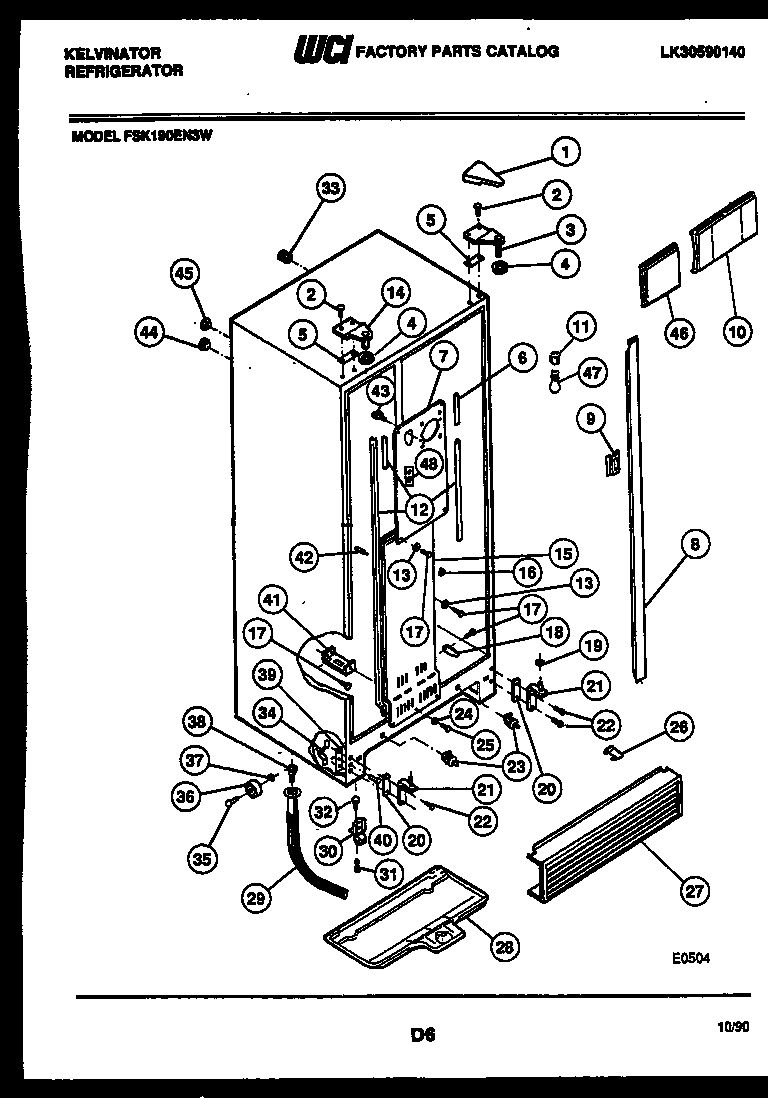

FSK190EN3V 04 – CABINET PARTS

FSK190EN3V 04 – CABINET PARTS

Written by

in

FSK190EN3V 04 – CABINET PARTS

Products

PositionProduct
*13895PLUG, BUTTON, CABINET LINER (NI)
*13895WCI 5303001213
*13895CLIP-WIRING HARNESS
*138955304509705 Frigidaire Refrigerator Grommet
1COVER-HINGE-AVOCADO
2241710601 Frigidaire Refrigerator Screw
3WCI 5308012934
4WCI 5308000186
5SHIM – UPPER HINGE
6WCI 5303001219
7ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
7WCI 5303006543
8WCI 3916445
9WCI 5300169100
10LIGHT SHIELD – REFRIGERATOR
11218906802 Frigidaire Light Lamp Socket
12WCI 5303001233
13WASHER-NYLON,3/16 X 5/8 OD
14WCI 5303001062
14ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
15A5303208309 Frigidaire Refrigerator Plug Hole
15WCI 5308017223
16WCI 5303001231
175304455650 Frigidaire Refrigerator Screw
18DAMPER, MEAT KEEPER
19WASHER, .28 X .62 X .19, NYLON
20SHIM-BTM HINGE (3)
21HINGE-BOTTOM
22SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
235303289051 Frigidaire Refrigerator Light Switch
23ACLIP-CABLE
24WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
25WCI 5303001230
26CLIP-GRILLE
27WCI G161905-07
28WCI 5308000086
28AWCI 08000099
29WCI 5303209723
30ROLLER-FRONT (2)
31SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
32SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
33TUBE-RUBBER
34WCI 5300077210
35WCI 5308000266
36WCI 5303001030
37Nut,push-on
38WCI 5308000853
39WCI 5303001273
40WCI 5308000013
41WCI 5308000738
42WCI 5303001250
43SUPPORT-COIL COVER
44WCI 5303001286
45WCI 5303001287
46LIGHT SHIELD – FREEZER
47316538904 Frigidaire Oven Lamp Light
48PLUG-DECORATIVE, ICE MAKER HOLE
