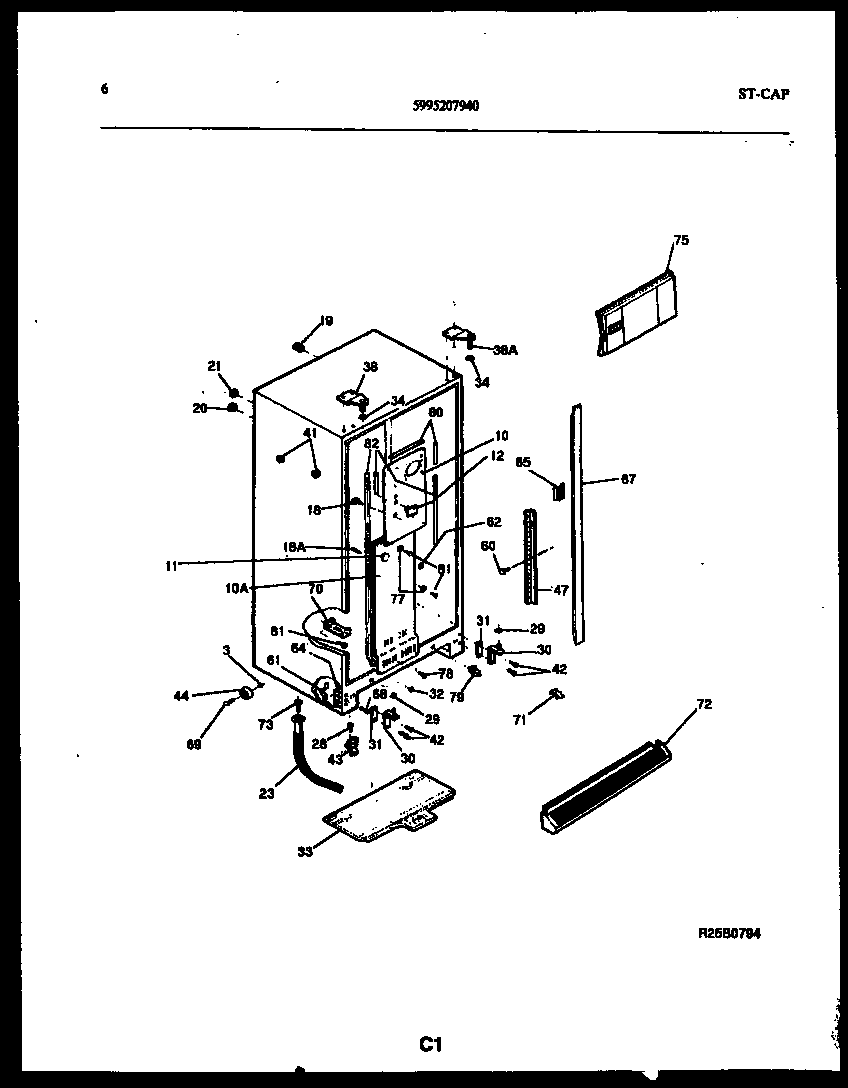

FSK190JN0W 04 – CABINET PARTS

Products

Position	Product
*20614	WCI 5300169100
3	Nut,push-on
10	COVER-EVAP COIL, UPPER
10A	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10A	COVER-COIL LOWER
11	5303208309 Frigidaire Refrigerator Plug Hole
12	PLUG-DECORATIVE, ICE MAKER HOLE
18	SUPPORT-COIL COVER
18A	WCI 5303001250
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
23	WCI 5303209723
23A	CLAMP-TUBE
28	SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
29	WASHER, .28 X .62 X .19, NYLON
30	HINGE-BOTTOM
31	SHIM-BTM HINGE (3)
32	BUTTON PLUG-CAB BASE
33A	WCI 08000099
33	WCI 5308000086
34	WCI 5308000186
38B	241710601 Frigidaire Refrigerator Screw
38A	WCI 5308012934
38C	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38	WCI 5303001062
41	5304509705 Frigidaire Refrigerator Grommet
42	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
43	ROLLER-FRONT (2)
43A	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44	WCI 5303001030
47	CHANNEL-SHELF MTG (2)
60	5304455852 Frigidaire Refrigerator Screw
61	WCI 5300077210
62	WCI 5303001231
64	WCI 5303001273
65	WCI 5303001281
