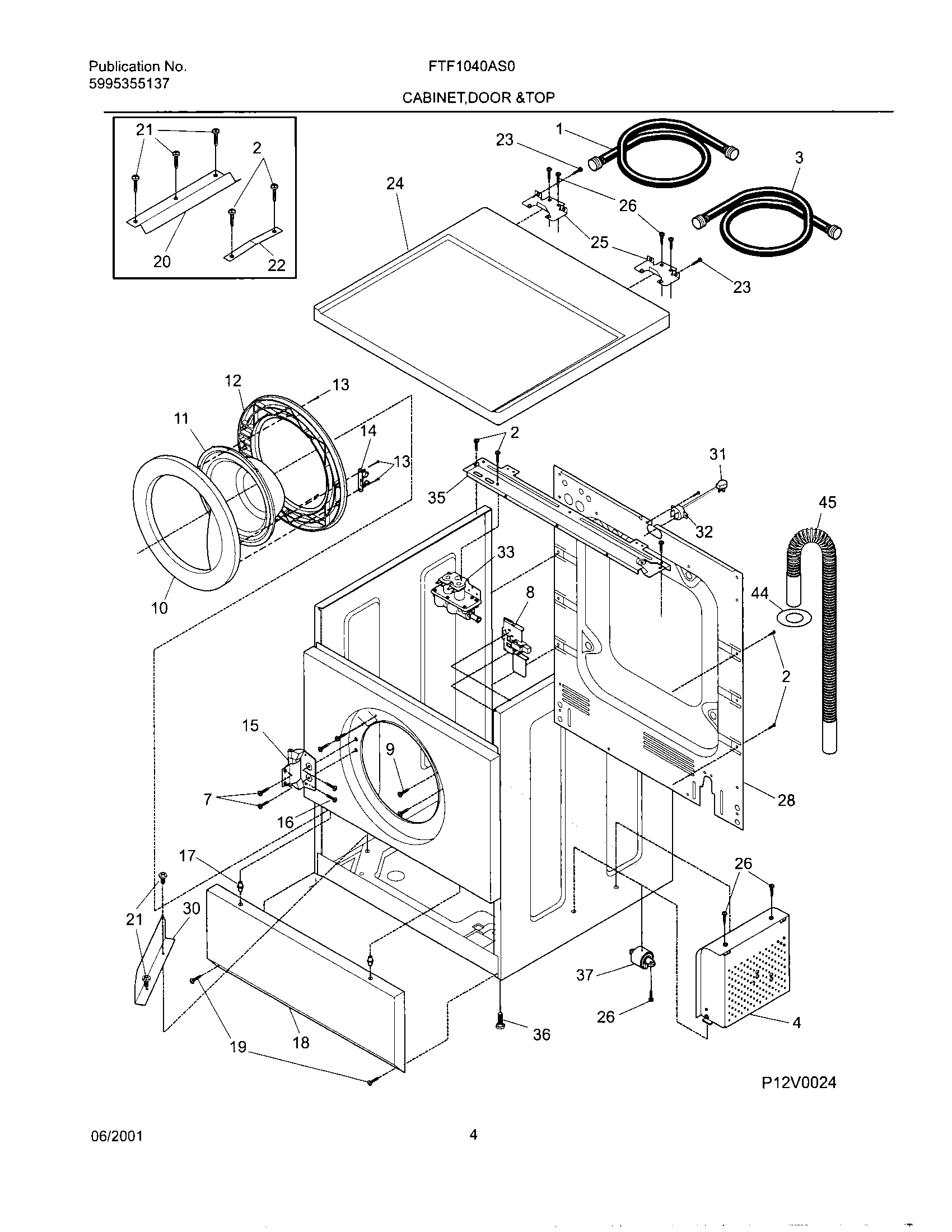

FTF1040AS0 05 – WSHR CAB,DOOR

FTF1040AS0 05 – WSHR CAB,DOOR

Written by

in

FTF1040AS0 05 – WSHR CAB,DOOR

Products

PositionProduct
NIWCI 131883101
NIWCI 131453001
15303912532 Frigidaire Hose Inlet 60"
2131168200 Frigidaire Dryer Screw
4WCI 131770700
7131205300 Frigidaire Screw
8DOOR LOCK/SWITCH ASSY
9131302800 Frigidaire Drum Vane Screw
10131278700 Frigidaire Outer Door
11Panel,door glass
12134426500 Frigidaire Inner Door Panel Ki
13131302901 Frigidaire Screw
14131763302 Frigidaire Washer Door Strike
15134264600 Frigidaire Hinge
16131696300 Frigidaire Screw 10-16 X 0.312 Qu
17WCI 131346400
18Panel,Service ,white ,kick plate
19218362501 Frigidaire Refrigerator Screw
20Bracket,top panel mtg. ,front
21131243700 Frigidaire Screw
22Retainer,spring steel
23131243800 Frigidaire Screw
24WCI 131677308
25Bracket,top panel mtg.
26134178901 Frigidaire Screw
28WCI 131978500
30WCI 131859600
315304505407 Frigidaire Cord
325303209428 Frigidaire Serv.Cord Bushing
33134190200 Frigidaire Washer Water Valve
35WCI 131732901
36131841600 Frigidaire Washer Levelling Leg
37WCI 131304200
44131707800 Frigidaire Drain Hose Ring
45131461200 Frigidaire Washer Drain Hose
