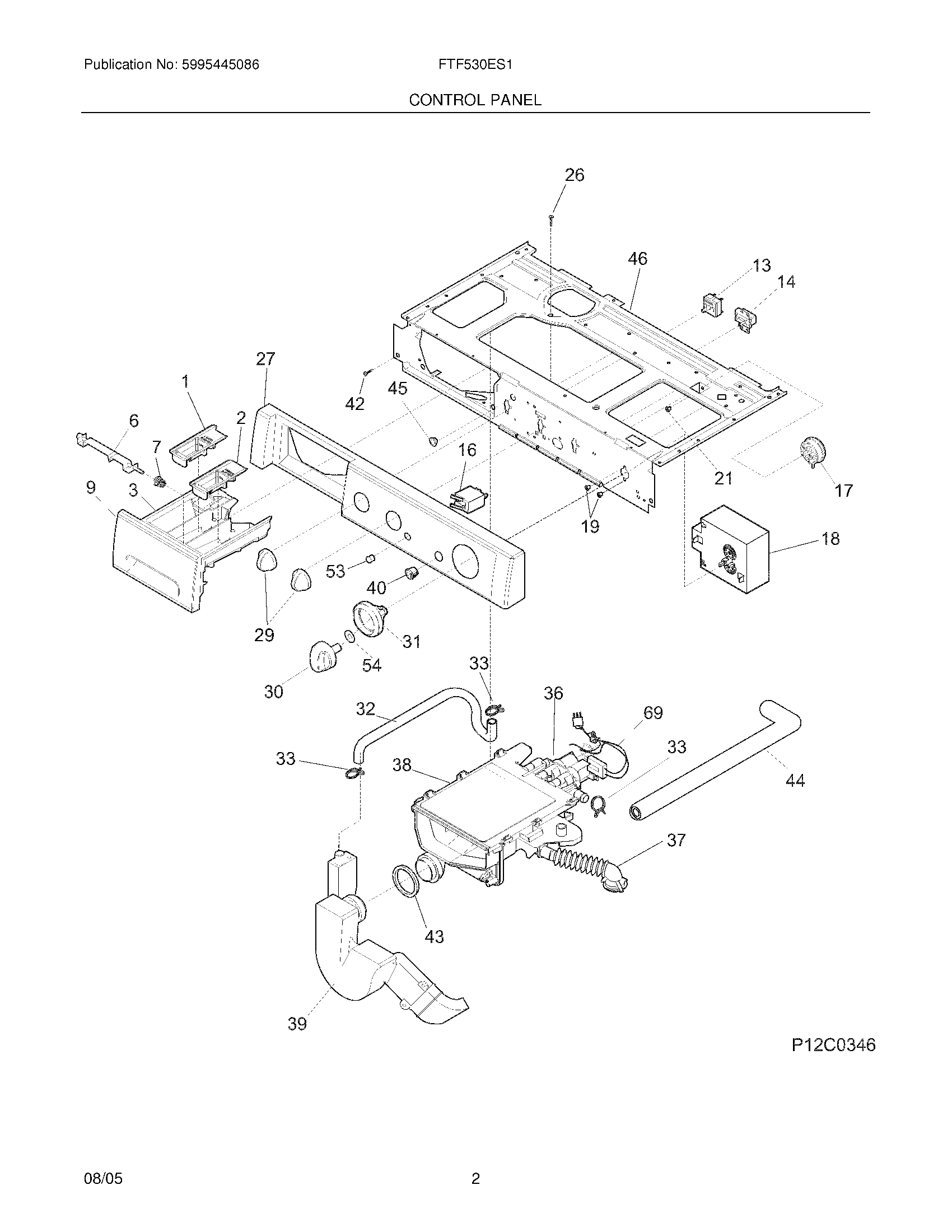

FTF530ES1 03 – CONTROL PANEL

Products

Position	Product
NI	Clamp,siphon/bellows
NI	WCI 131931201
1	WCI 131272100
2	WCI 131272000
3	WCI 131271910
6	Latch,disp drawer hdl
7	WCI 131427500
9	WCI 131691207
13	Switch,temp selector ,3 posn rotary
14	WCI 134126700
16	Lamp,status light
17	WCI 134431101
18	137394000 Frigidaire Timer
19	131243800 Frigidaire Screw
21	131243700 Frigidaire Screw
26	WCI 131823400
27	WCI 131887207
29	131761704 Frigidaire Knob Rotary
30	134191800 Frigidaire Knob
31	WCI 131853900
32	WCI 131786100
33	134737300 Frigidaire Clamp
36	131974700 Frigidaire Dispensing Valve Assembly
37	131271600 Frigidaire Washer Dryer Tub Hose
38	WCI 131803710
39	WCI 131863300
40	134040800 Frigidaire Switch
42	131168200 Frigidaire Dryer Screw
43	WCI 131749200
44	WCI 131786000
45	Bushing,idler
46	WCI 134191412
53	Lens,status light ,clear
54	Spacer,washer ,timer shaft
69	WCI 134547500
