FU054ERD1 02 – DOOR

FU054ERD1 02 – DOOR

Written by

in

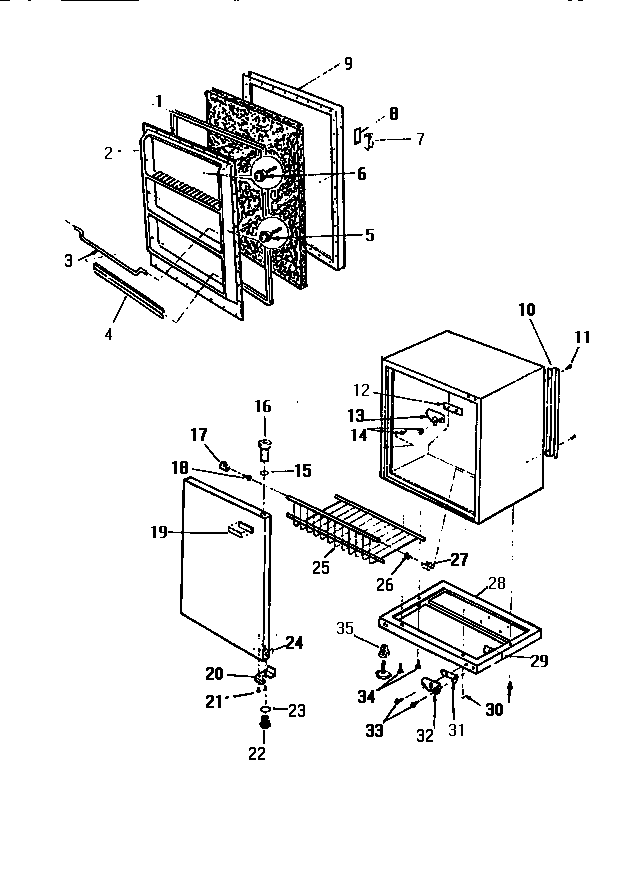

FU054ERD1 02 – DOOR

Products

PositionProduct
*30240PLASTIC BAG
*30241FIBERGLASS 34“X48“X11/2 “ TH
*30242FIBERGLASS INSULATION 34“X48“X1“TH
*30243FIBERGLASS INSULATION 34“X48“X1/2“ TH
*30244LEG LEVELER (2)
1WCI F126449
2WCI 4678378A01
3SHELF ROD OFFSET (2)
4WCI F126822
6SCREW-PANEL
7WCI F113585-1
8WCI F112639
9WCI 4678373A02
10WCI F126598-60
12WCI F126371
13HINGE TOP
14SCREW TOP HINGE (2)
15RING SEAL TOP HINGE
16BEARING TOP HINGE
19WCI G177290
20BRACKET-DOOR STOP
21SCREW-STOP
22WCI F95421
23WASHER
24WCI F900107
25PACKAGE RACK
26WCI F900143
27SUPPORT PACKAGE RACK (2)
28WCI F126191-8
29TAPPING PLATE BOTTOM HINGE (2)
31SPACER BOTTOM HINGE
32HINGE BOTTOM
33WCI F900129
34SCREW BASE ASSEMBLY (4)
35INSERT LEG LEVELER (2)
