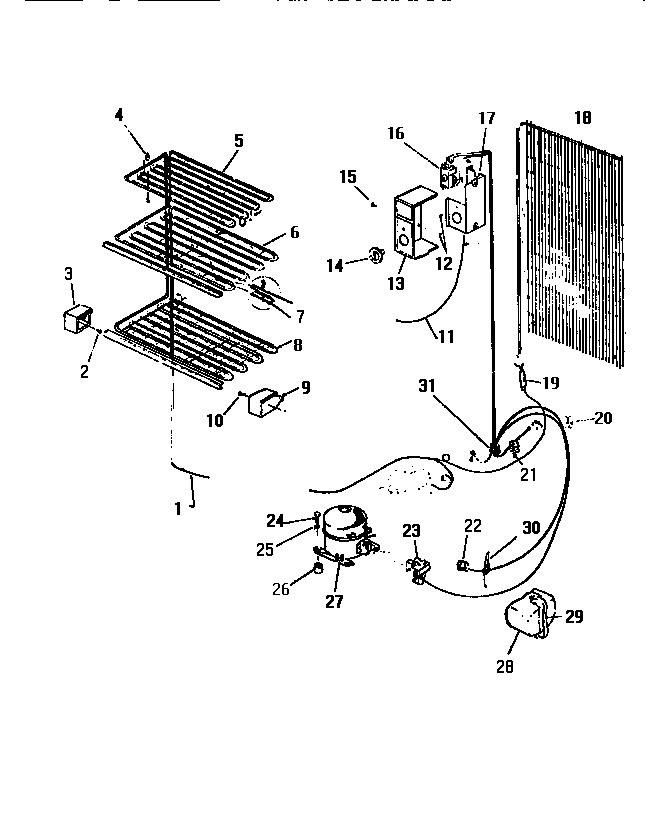

| 1 | HEAT EXCHANGER (NON-ILLUSTRATED) |
| 3 | SUPPORT FRONT LH (2) |
| 4 | GROMMET SPACER |
| 5 | TOP EVAP PLATE |
| 6 | TOP EVAP SHELF |
| 7 | WCI F96850 |
| 8 | BOTTOM EVAP SHELF |
| 9 | SUPPORT FRONT RH (2) |
| 10 | WCI F900143 |
| 11 | TUBE |
| 12 | SCREW CONTROL |
| 13 | WCI F126823 |
| 14 | KNOB |
| 15 | CLIP-HOUSING TO BRACKET |
| 16 | WCI R900669 |
| 17 | BRACKET - COLD CONTROL |
| 18 | EXTERNAL CONDENSER (NON-ILLUSTRATED) |
| 19 | DRIER-REGULAR |
| 19A | WCI R900125 |
| 20 | WCI F59872 |
| 21 | 5304455846 Frigidaire Refrigerator Clamp |
| 22 | WCI F117102 |
| 23 | WCI G150618-10 |
| 24 | WCI G154589 |
| 25 | SLEEVE |
| 26 | 216498900 Frigidaire Refrigerator Grommet |
| 27 | WCI C620112 |
| 29 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 30 | CLIP |
| 31 | HARNESS |
