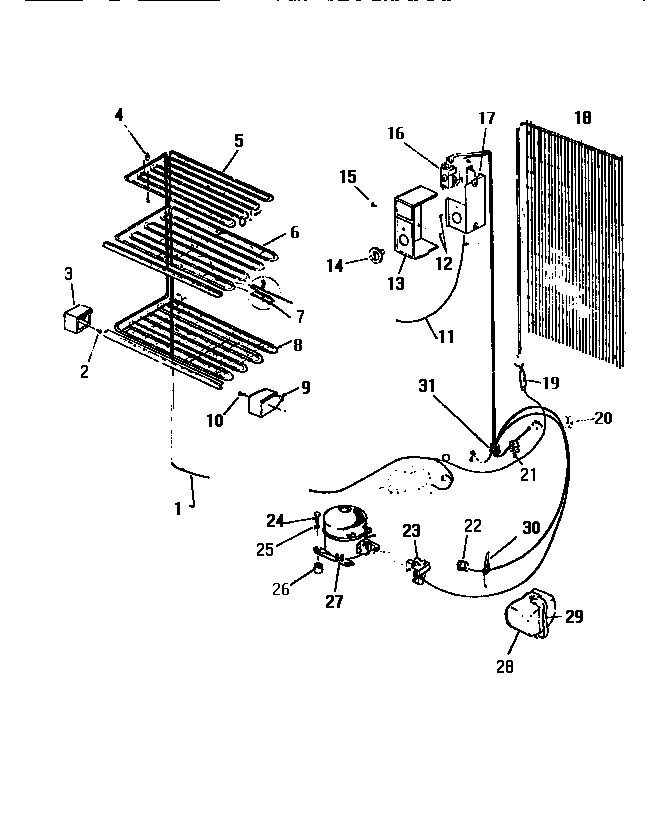

FU054ERD3 03 – SYSTEMS

Products

Position	Product
1	HEAT EXCHANGER (NON-ILLUSTRATED)
3	SUPPORT FRONT LH (2)
4	GROMMET SPACER
5	TOP EVAP PLATE
6	TOP EVAP SHELF
7	WCI F96850
8	BOTTOM EVAP SHELF
9	SUPPORT FRONT RH (2)
10	WCI F900143
11	TUBE
12	SCREW CONTROL
13	WCI F126823
14	KNOB
15	CLIP-HOUSING TO BRACKET
16	WCI R900669
17	BRACKET – COLD CONTROL
18	EXTERNAL CONDENSER (NON-ILLUSTRATED)
19A	WCI R900125
19	DRIER-REGULAR
20	WCI F59872
21	5304455846 Frigidaire Refrigerator Clamp
22	WCI F127581
23	WCI R127795
24	WCI G154589
25	SLEEVE
26	216498900 Frigidaire Refrigerator Grommet
27	WCI C620112
28	WCI R127580
29	WCI R127578
30	WCI R127581
31	HARNESS
