FU054ERW1 03 – SYSTEMS

FU054ERW1 03 – SYSTEMS

Written by

in

FU054ERW1 03 – SYSTEMS

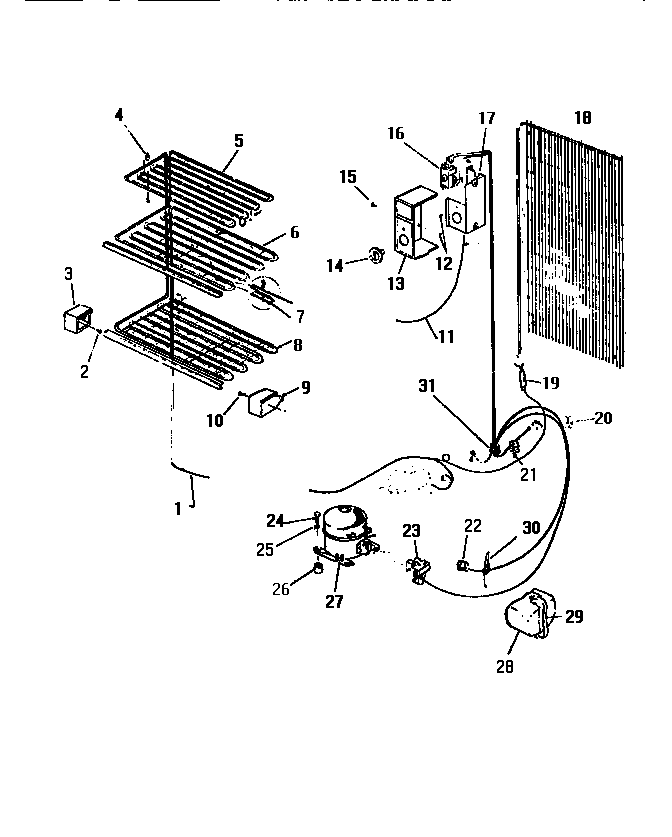

Products

PositionProduct
1HEAT EXCHANGER (NON-ILLUSTRATED)
3SUPPORT FRONT LH (2)
4GROMMET SPACER
5TOP EVAP PLATE
6TOP EVAP SHELF
7WCI F96850
8BOTTOM EVAP SHELF
9SUPPORT FRONT RH (2)
10WCI F900143
11TUBE
12SCREW CONTROL
13WCI F126823
14KNOB
15CLIP-HOUSING TO BRACKET
16WCI R900669
17BRACKET – COLD CONTROL
18EXTERNAL CONDENSER (NON-ILLUSTRATED)
19DRIER-REGULAR
19AWCI R900125
20WCI F59872
215304455846 Frigidaire Refrigerator Clamp
22WCI F117102
23WCI G150618-10
24WCI G154589
25SLEEVE
26216498900 Frigidaire Refrigerator Grommet
27WCI C620112
295303006412 Frigidaire Refrigerator Cover Mounting Strap
30CLIP
31HARNESS
