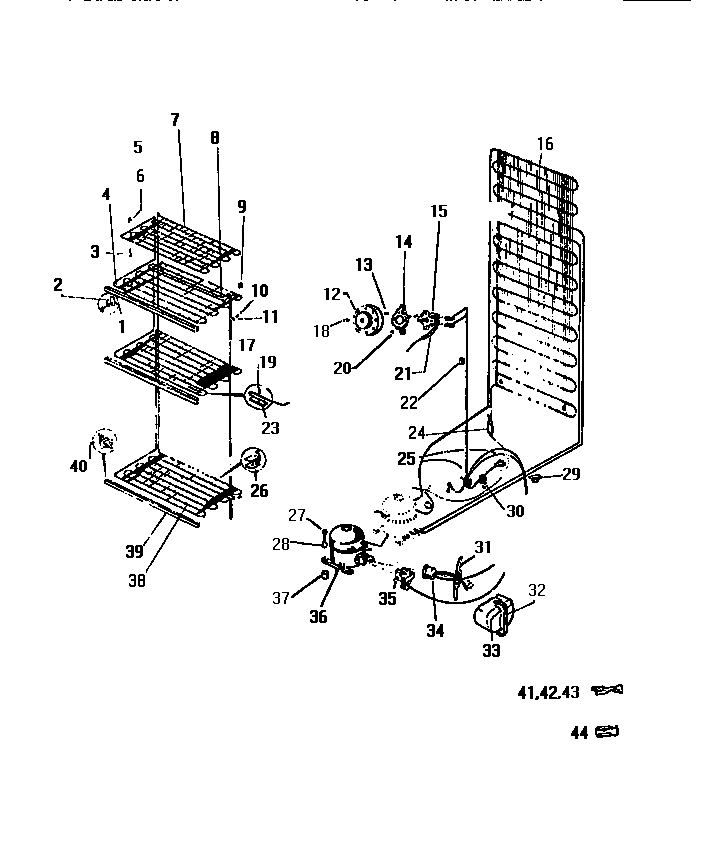

FU100JRW2 04 – SYSTEM

Products

Position	Product
*43041	INSULATION HEAT EXCH.
1	WASHER (3)
2	WCI F50732
3	WCI F115299
4	FIRST SHELF
5	SPCR-TOPGRID FRONT (2)
6	SPCR-TOP GRID REAR (NON-ILLUSTRATED)
7	WCI F122960
8	WCI F122964
9	WCI F86523
11	WCI F58105
12	WCI R901057
13	SCREW CONTROL
14	WCI R901020
15	WCI F126974
16	WCI F124042
17	WCI F122962
18	SCREW KNOB
19	216036601 Frigidaire Refrigerator Screw
20	216858001 Frigidaire Refrigerator Screw
21	TUBE
22	WCI F112321
23	WCI F96850
24	WCI R900125
24A	DRIER-REGULAR
25	NAMEPLATE
26	WCI F117447
27	WCI F59211
28	SLEEVE
29	CLIP
30	5304455846 Frigidaire Refrigerator Clamp
31	WCI R127579
32	WCI R900993
33	WCI R900992
34	RELAY
35	WCI R900933
36	WCI R900572
37	216498900 Frigidaire Refrigerator Grommet
38	BOTTOM SHELF
39	SHELF TRIM
40	SUPT FRONT RH (3)
40	297001600 Frigidaire Shelf Support
41	RECEPTACLE, STRAIGHT, 1/4“ BLADE TERMINAL (PKG. OF 12)
42	RECEPTACLE, STRAIGHT, FOR 3/16“ BLADE TERM. (PKG. OF 12)
43	RECEPTACLE, STRAIGHT, FOR 5/16“ BLADE TERM. (PKG. OF 12)
44	WCI Q301296
