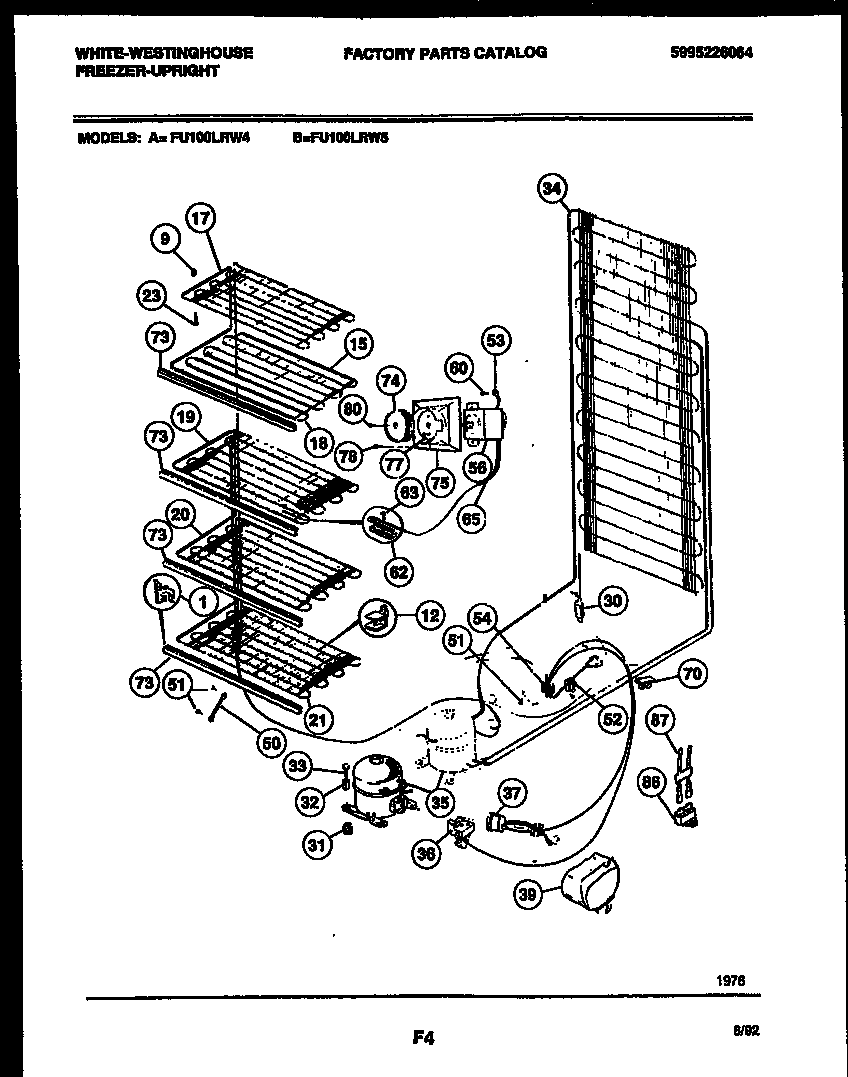

FU100LRW5 04 – SYSTEM AND ELECTRICAL PARTS

FU100LRW5 04 – SYSTEM AND ELECTRICAL PARTS

Written by

in

FU100LRW5 04 – SYSTEM AND ELECTRICAL PARTS

Products

PositionProduct
1297001600 Frigidaire Shelf Support
1A297001500 Frigidaire Shelf Support
9SPCR-TOPGRID FRONT (2)
9ASPACER-REAR
12WCI 09949960
15WCI 5308010744
17WCI 08010734
18WCI 08010735
19WCI 08010736
21WCI 08010737
23SCREW
305303305677 Frigidaire Replacement Filter Dryer Filters
31216498900 Frigidaire Refrigerator Grommet
32SLEEVE-COMPRESSOR
33CREW COMPR MTG
34WCI 08009370
35COMPRESSOR WITH ELECTRICALS
36WCI 5303017753
37WCI 5303206816
39COVER
50WCI 06594651
51WCI 08037851
525304455846 Frigidaire Refrigerator Clamp
53WIRE-GROUND, TEMP CONTROL
54HARNESS W/ PWR CORD
56WCI 216023000
62CLAMP, CAP TUBE, COLD CONTROL
63SCREW, CLAMP, TRUSS HD CR, CONTROL
65TUBE
70WCI 06599553
73WCI 216045700
74WCI 216008602
75HOUSING
77SCREW, COVER CONTROL
78216036601 Frigidaire Refrigerator Screw
80WCI 09950853
86WCI 216134900
