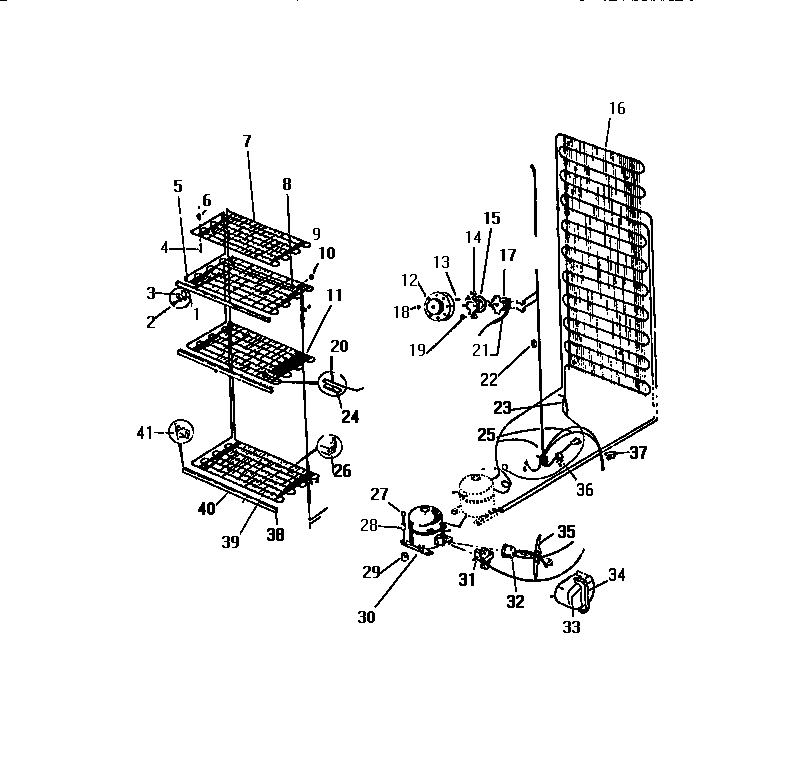

FU134ERW3 04 – SYSTEMS

Products

Position	Product
*93680	INSULATION HEAT EXCH.
1	WASHER (3)
2	WCI F57966
3	WCI F50732
4	WCI F115299
5	WCI F121175
6	SPCR-TOPGRID FRONT (2)
7	WCI F121174
8	HEAT EXCHANGER
9	WCI F56440
10	WCI F86523
11	WCI F121176
12	WCI F120058-1
13	SCREW CONTROL
14	BRKT
15	SHIELD, COLD CONTROL
16	5300123788 Frigidaire Refrigerator Condenser
17	COLD CONTROL
18	SCREW KNOB
19	216858001 Frigidaire Refrigerator Screw
20	SCREW-CLAMP
21	TUBE
22	WCI F112321
23	WCI R900125
23	DRIER-REGULAR
24	WCI F96850
25	WCI F121727
26	WCI F117447
27	WCI F59211
28	SLEEVE
29	216498900 Frigidaire Refrigerator Grommet
30	WCI R900572
31	RELAY (NON-ILLUSTRATED)
32	OVERLOAD (NON-ILLUSTRATED)
33	WCI F122736
34	WCI F122735
35	WCI F122734
36	5304455846 Frigidaire Refrigerator Clamp
37	CLIP
38	SUPT FRONT RH (3)
39	WCI F121177
40	SHELF TRIM (3)
41	297001600 Frigidaire Shelf Support
