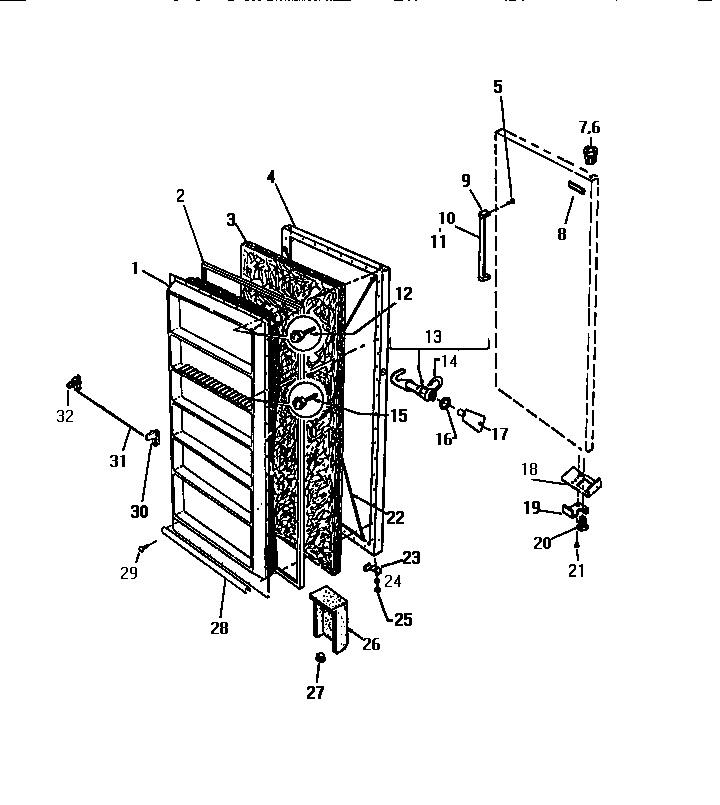

FU134JRW2 02 – DOOR

Products

Position	Product
1	WCI R901054
2	WCI R901056
3	WCI F116277
4	WCI F122111-64
5	WCI F97614
6	WASHER
7	WCI F84893
8	NAMEPLATE
9	END CAP TOP & BTM
10	WCI Q277252
11	WCI Q503165
12	SCREW (16)
13	LOCK COMPRESSOR
14	CLIP, LOCK
15	SCREW (24)
16	WCI F114386
17	297147700 Frigidaire Freezer Plastic Door Key
18	BRACKET-DOOR STOP
19	STOP
20	WCI R901013
21	SCREW-STOP
22	WIRE ADJUSTING (2)
23	WCI F57880
24	WASHER BRACKET (2)
25	SCREW, BRACKET (2)
26	AIR DUCT BREATHER
28	WCI F99439
29	5303922007 Frigidaire Refrigerator Clip,Pkg 0F 24
30	END CAP RH (4)
31	WCI R901055
32	END CAP LH (4)
