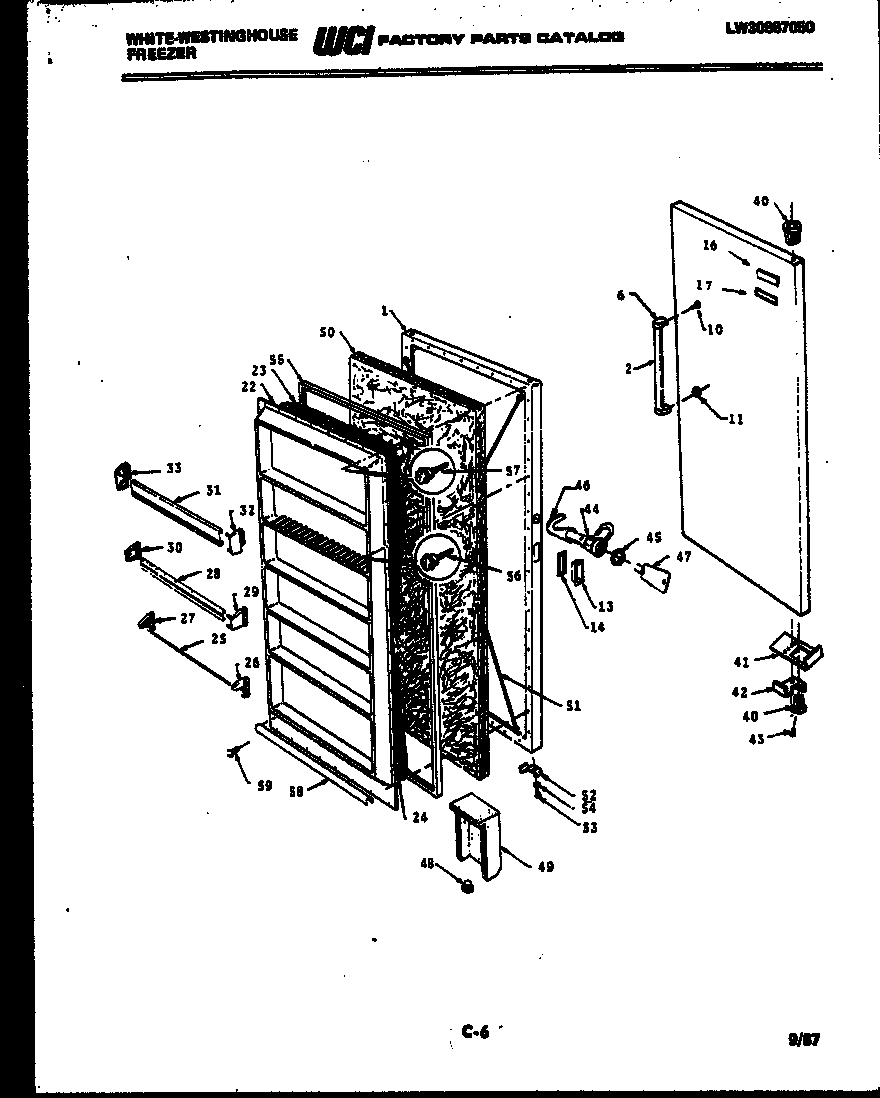

FU134JRW4 02 – DOOR PARTS

Products

Position	Product
1	PANEL DOOR (WHITE TEXTURE)
2	WCI Q277252
6	END CAP, TOP
10	216858001 Frigidaire Refrigerator Screw
11	134716700 Frigidaire Washer
16	PLATE
17	INSERT
18	TAPE (NON-ILLUSTRATED)
22	INNER PANEL
23	INSULATION, DIKES
25	SHELF FRONT WIRE (4)
26	END CAP RH (4)
27	END CAP LH (4)
40	WCI F84893
40	297006800 Frigidaire Refrigerator Bearing Hinge
41	BRACKET-DOOR STOP
42	WCI F124623
43	SCREW-STOP
44	WCI F300788
45	WASHER
46	WCI F124455
47	297147700 Frigidaire Freezer Plastic Door Key
49	AIR DUCT BREATHER
50	WCI F116277
51	WIRE ADJUSTING
52	WCI F57880
53	SCREW, BRACKET (2)
54	WASHER BRACKET (2)
55	GASKET (BROWN)
57	SCREW-PANEL
58	WCI F99439
59	5303922007 Frigidaire Refrigerator Clip,Pkg 0F 24
