FU134JRW5 04 – SHELVES AND SUPPORTS

FU134JRW5 04 – SHELVES AND SUPPORTS

Written by

in

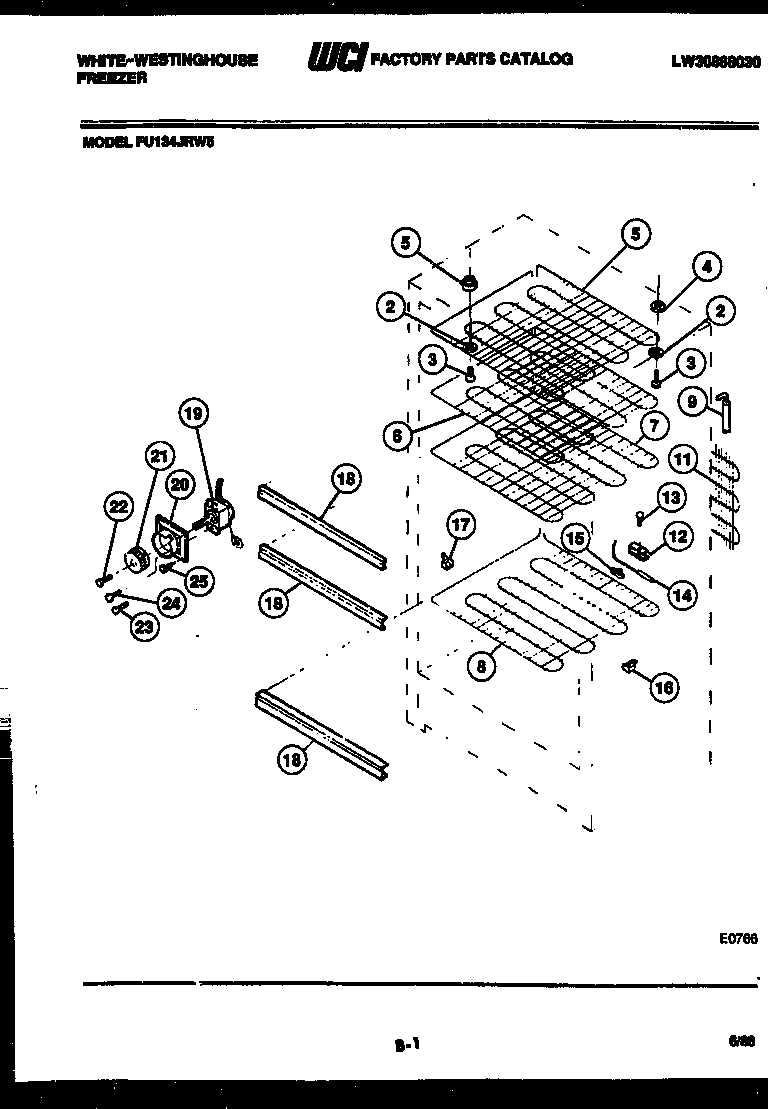

FU134JRW5 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1SPCR-TOPGRID FRONT (2)
2WASHER (3)
3WCI F126260
4SPCR-TOP GRID REAR (NON-ILLUSTRATED)
5WCI F121174
6WCI F121175
7WCI F125270
8WCI F121177
9WCI F125274
10WCI F58148-58
115300123788 Frigidaire Refrigerator Condenser
12WCI F96850
13SCREW-CLAMP
14TUBE
15WCI F117447
16297001500 Frigidaire Shelf Support
17297001600 Frigidaire Shelf Support
18SHELF TRIM (3)
19WCI F126974
20WCI F128633
21KNOB, COLD CONTROL
22SCREW KNOB
23SCREW CONTROL
25216036601 Frigidaire Refrigerator Screw
