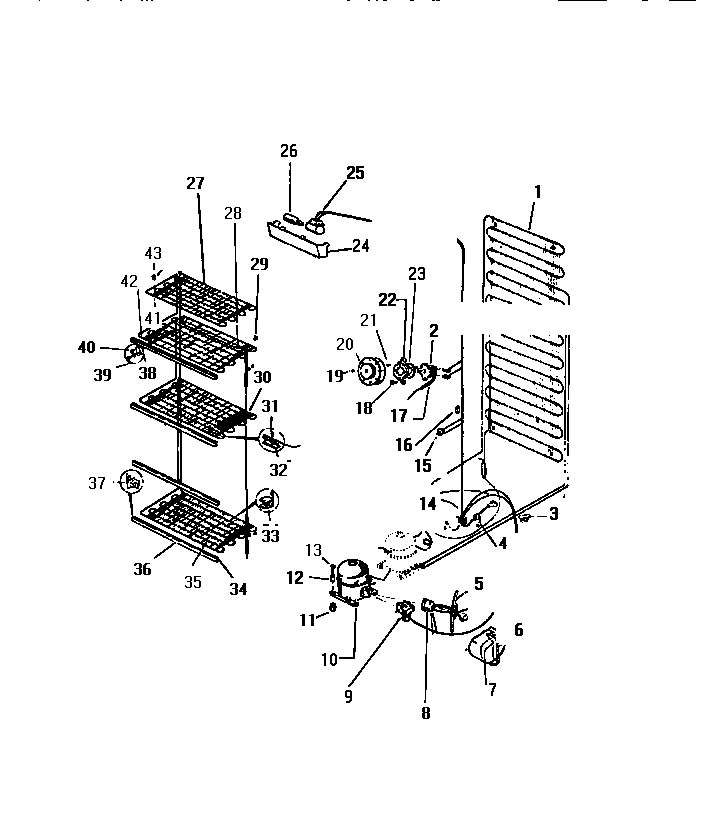

FU161ERW5 04 – SYSTEMS

Products

Position	Product
*49360	WCI NOTE
1	5300123788 Frigidaire Refrigerator Condenser
2	COLD CONTROL
3	CLIP
4	5304455846 Frigidaire Refrigerator Clamp
6	5303006412 Frigidaire Refrigerator Cover Mounting Strap
8	WCI F118186
9	WCI G150618-11
10A	USE COMPR. MTG KIT, 7 X 7 TO 4 X 6-1/2 MTG
10B	COMPRESSOR, 4 X 6 1/2“ MTG TO 7 X 7 MTG
10	COMPRESSOR W/RELAY-OVLD, (SEE NOTES 1 AND 2)
11	216498900 Frigidaire Refrigerator Grommet
12	SLEEVE
13	WCI F59211
14	WCI F124117
16	WCI F112321
17	TUBE
18	216858001 Frigidaire Refrigerator Screw
19	SCREW KNOB
20	WCI F122435
21	SCREW CONTROL
22	BRKT
27	WCI F121179
28	HEAT EXCH.
29	WCI F86523
30	SECOND SHELF
31	SCREW-CLAMP
32	WCI F96850
33	WCI F117447
34	SUPT FRONT RH (3)
35	BOTTOM SHELF
36	SHELF TRIM (3)
37	297001600 Frigidaire Shelf Support
38	WASHER (3)
39	WCI F57966
40	WCI F50732
41	WCI F115299
42	FIRST SHELF
43	SPCR-TOPGRID FRONT (2)
