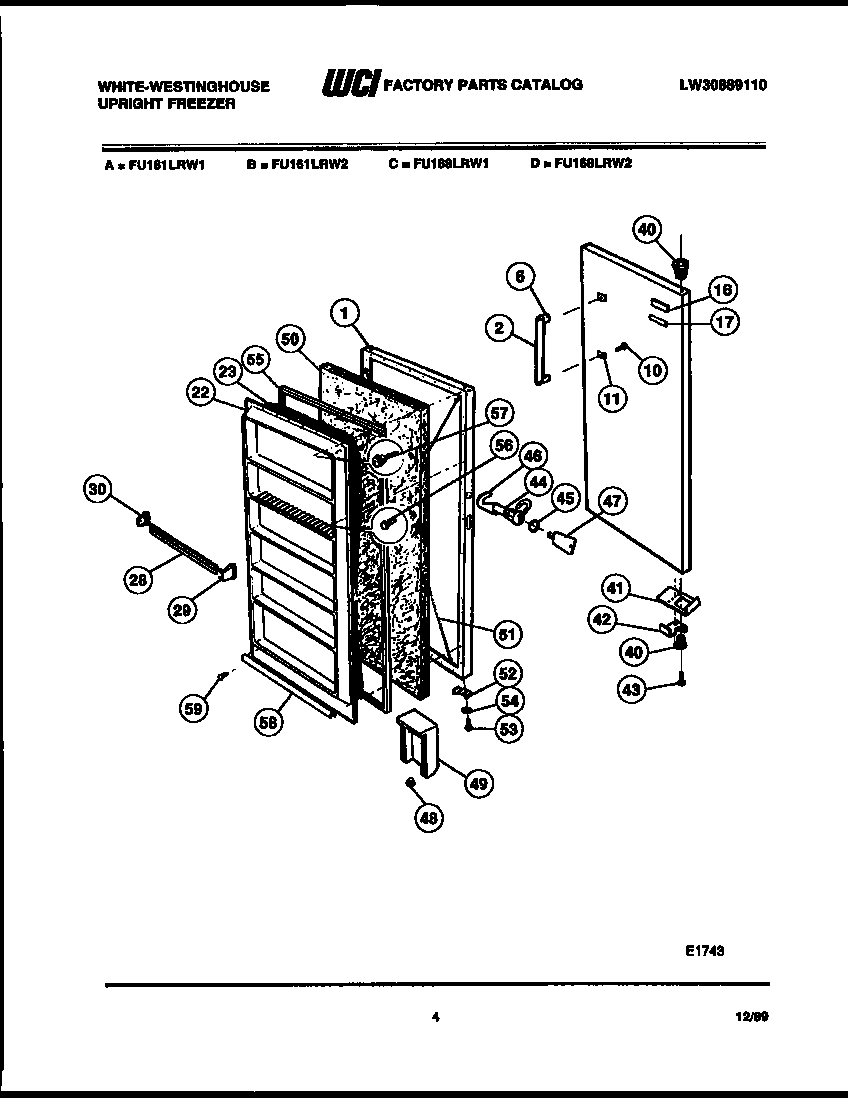

FU161LRW2 03 – DOOR PARTS

Products

Position	Product
1	DOOR-PANEL (WHITE)
2	WCI 3200979
6	SUPPORT
10	216858001 Frigidaire Refrigerator Screw
11	134716700 Frigidaire Washer
16	PLATE
17	INSERT
22	INNER PANEL (WHITE)
23	INSULATION (CUT TO SIZE)
28	HANDLE
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
40	297006800 Frigidaire Refrigerator Bearing Hinge
40	WASHER
41	BRACKET-DOOR STOP
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI G190358
45	WASHER
46	WCI 3202005
47	297147700 Frigidaire Freezer Plastic Door Key
49	WCI F000128421
50	INSULATION-BULK
51	WIRE-DOOR ADJUSTMNT
52	WCI 05879859
53	SCREW, BRACKET (2)
54	WASHER, PLAIN, DOOR BRACKET
55	SEAL
57	WCI 08009384
58	WCI 06594682
59	5303212828 Frigidaire Refrigerator Primary Clip
