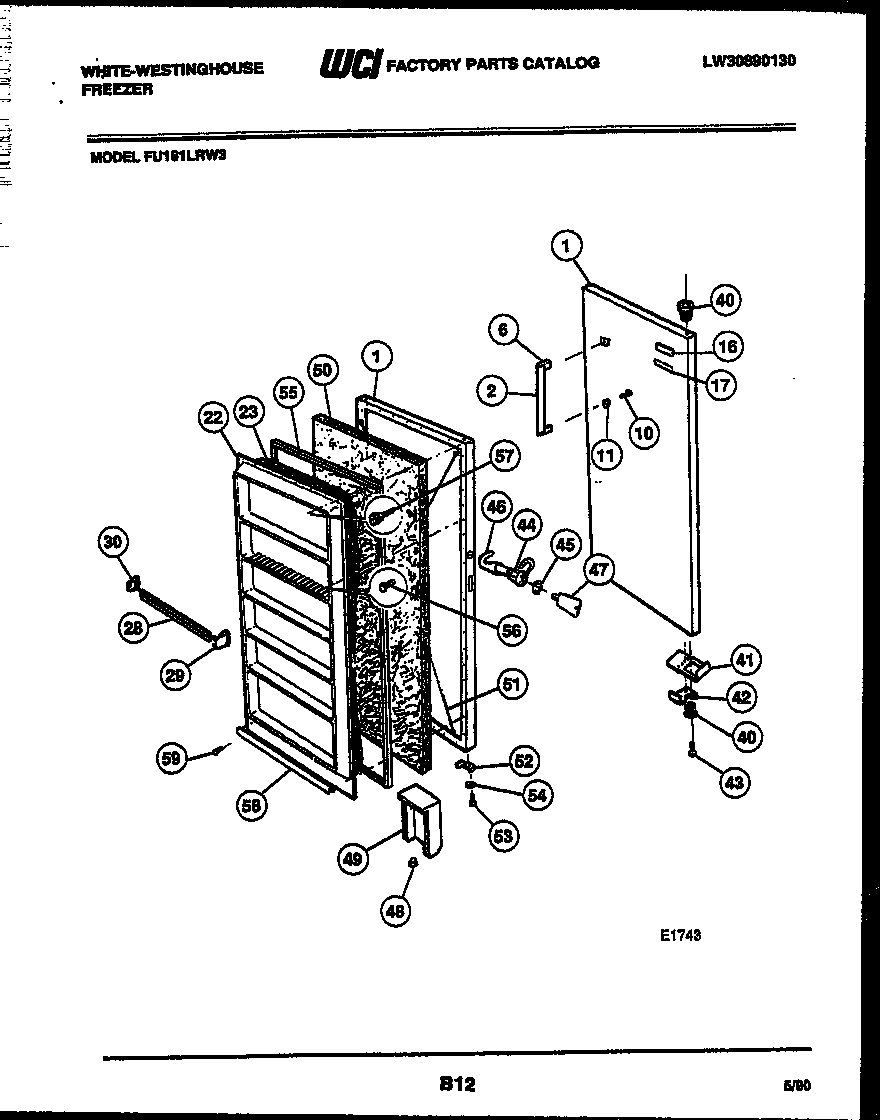

FU161LRW3 02 – DOOR PARTS

Products

Position	Product
1	DOOR-PANEL (WHITE)
2	WCI 3200979
6	WCI 5308016581
10	216858001 Frigidaire Refrigerator Screw
11	134716700 Frigidaire Washer
16	WCI R000901066
17	INSERT
22	INNER PANEL (WHITE)
23	INSULATION (CUT TO SIZE)
28	HANDLE
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
40A	WCI 5306593364
40	297006800 Frigidaire Refrigerator Bearing Hinge
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5300190358
45	Washer-sealing
46	WCI 3202005
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5300128421
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WIRE-DOOR ADJUSTMNT
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
55	WCI 3206429
57	WCI 08009384
58	WCI 06594682
59	5303212828 Frigidaire Refrigerator Primary Clip
