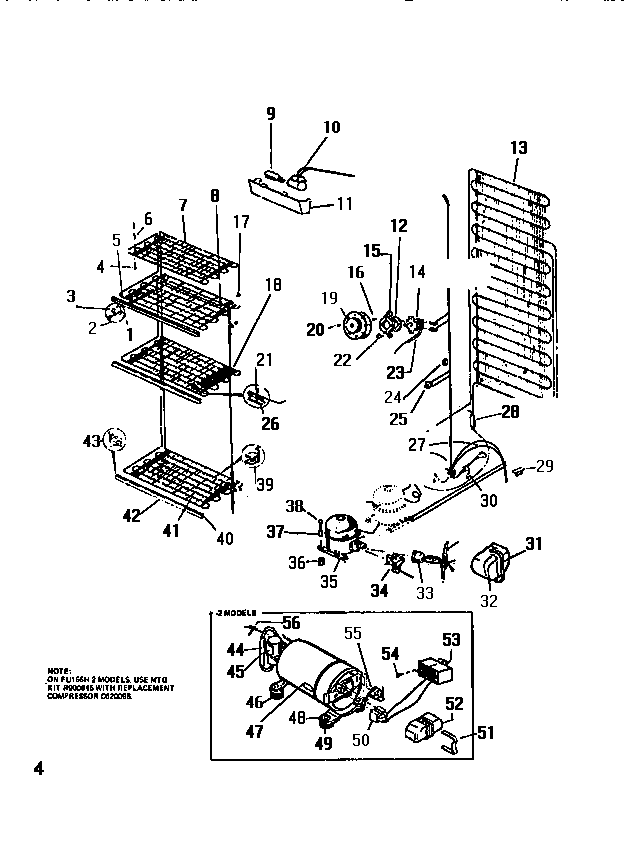

FU166HRW2 04 – COOLING SYSTEM

Products

Position	Product
1	WASHER (3)
2	WCI F57966
3	WCI F50732
4	WCI F115299
5	WCI F118961-2
6	SPCR-TOPGRID FRONT (2)
7	WCI F119996-2
8	HEAT EXCH.
9	WCI C501867
10	SOCKET
11	WCI F122434
12	SHIELD, COLD CONTROL
13	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
14	COLD CONTROL
15	BRKT
16	SCREW CONTROL
17	SPCR-TOP GRID REAR (NON-ILLUSTRATED)
18	WCI F126701
19	WCI F122435
20	SCREW KNOB
21	SCREW-CLAMP
23	TUBE
24	WCI F112321
25	5303289051 Frigidaire Refrigerator Light Switch
26	WCI F95850
27	WCI F128281
28A	DRIER-REGULAR
28	WCI R900125
29	CLIP
30	5304455846 Frigidaire Refrigerator Clamp
31	WCI F117106
33	WCI F126897
34	WCI F126896
36	216498900 Frigidaire Refrigerator Grommet
37	SLEEVE
38	WCI F59211
39	WCI F117447
40	SUPT FRONT RH (3)
41	WCI F118962-2
42	SHELF TRIM (3)
43	297001600 Frigidaire Shelf Support
44	WCI R128297
45	SOUND DEADENER
46	WCI R127121
47	COMPRESSOR W/RELAY-OVLD, (SEE NOTES 1 AND 2)
48	WCI R128283
49	WCI R127139
50	WCI R127122
51	WCI R127130
52	WCI R127119
53	WCI R127136
54	216858001 Frigidaire Refrigerator Screw
55	WCI R128280
56	WCI R127132
