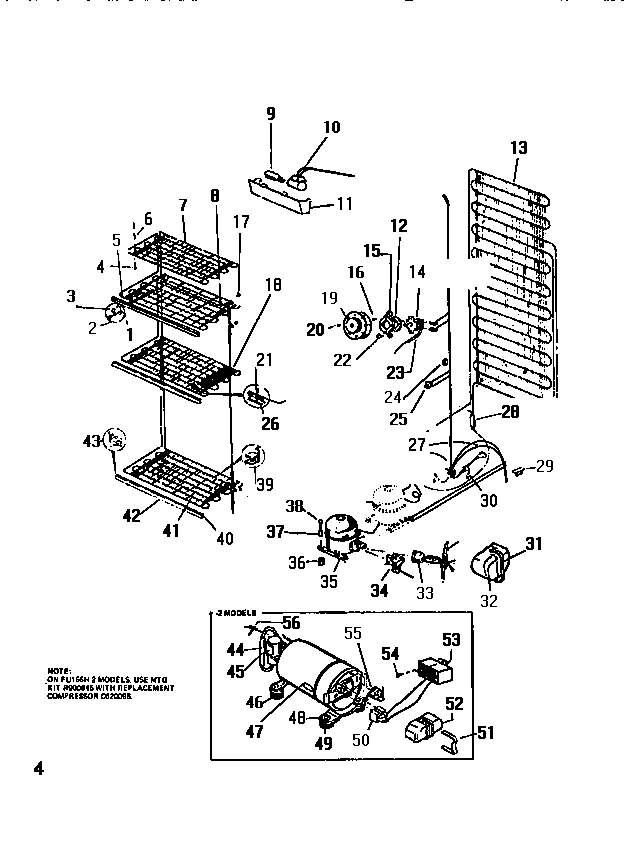

FU166HRW3 04 – COOLING SYSTEM

Products

Position	Product
1	WASHER (3)
2	WCI F57966
3	WCI F50732
4	WCI F115299
5	WCI F118961-2
6	SPCR-TOPGRID FRONT (2)
7	WCI F119996-2
8	HEAT EXCH.
9	WCI C501867
10	SOCKET
11	WCI F122434
12	SHIELD, COLD CONTROL
13	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
14	COLD CONTROL
15	BRKT
16	SCREW CONTROL
17	SPCR-TOP GRID REAR (NON-ILLUSTRATED)
18	WCI F126701
19	WCI F122435
20	SCREW KNOB
21	SCREW-CLAMP
22	216858001 Frigidaire Refrigerator Screw
23	TUBE
24	WCI F112321
25	5303289051 Frigidaire Refrigerator Light Switch
26	WCI F95850
28A	DRIER-REGULAR
28	WCI R900125
29	CLIP
30	5304455846 Frigidaire Refrigerator Clamp
31	WCI F117106
33	WCI F126897
34	WCI F126896
35	COMPRESSOR W/RELAY-OVLD, (SEE NOTES 1 AND 2)
36	216498900 Frigidaire Refrigerator Grommet
37	SLEEVE
38	WCI F59211
39	WCI F117447
40	SUPT FRONT RH (3)
41	WCI F118962-2
42	SHELF TRIM (3)
43	297001600 Frigidaire Shelf Support
