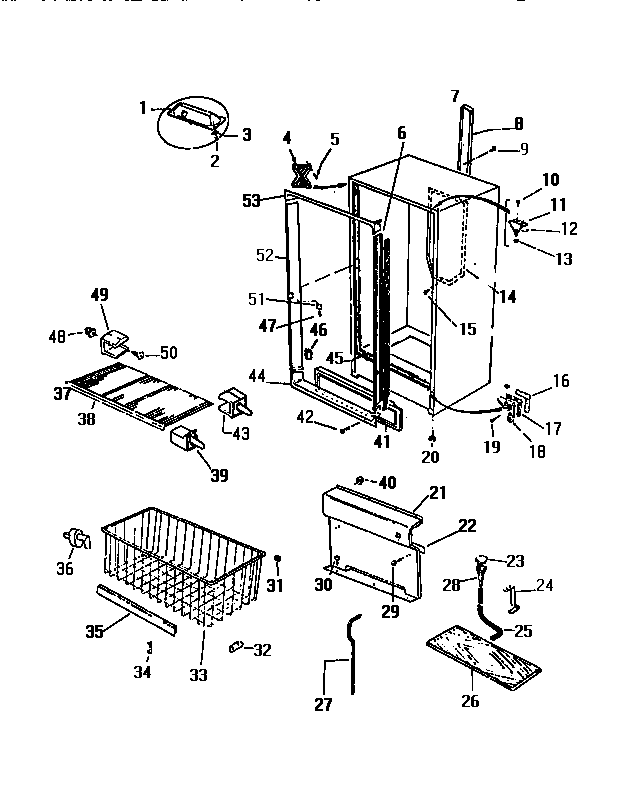

FU169ERW1 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

Products

Position	Product
*09641	INSULATION
*09640	WCI F121418-50
1	HOUSING
2	SCREW (2)
3	WCI F95480
4	WCI F84933
6	WCI F85173-64
7	SPACER, TOP BREAKER (2)
10	SCREW-HINGE-FRONT
11	WCI F93193
12	PLATE-TOP
13	BEARING, HINGE (3)
14	WCI F91574-1
16	WCI F84948
17	WCI F120978
18	WCI F84943
19	154518001 Frigidaire Refrigerator Screw
20	LEG
21	WCI F111725
22	WCI F111732
23	216503100 Frigidaire Refrigerator Screen-Drain
24	WCI F93775
25	5304512272 Frigidaire Hose Drain
26	DRAIN PAN
27	WCI F111782
28	5304511843 Frigidaire Refrigerator Sleeve
30	WCI F96849
31	5305878546 Frigidaire Refrigerator Bumper-Basket
32	08009560 Frigidaire 0 Basket Glide
33	5304497658 Frigidaire Refrigerator Basket
36	BUMPER-BASKET
37	WCI F117074-2
38	WCI F117074-1
39A	WCI F110931
39	SUPT LH (5)
40	WCI F50144
41	WCI F118002
42	WCI F118001
43	SUPPORT (4)
44	BREAKER-BOTTOM
45	WCI F99412
46	WCI F118003
47	216858001 Frigidaire Refrigerator Screw
48	INSERT-NUT (2)
49	WCI F86224
50	WCI F50837
51	WCI F117633
52	BREAKER-LOCK SIDE
53	BREAKER, TOP
