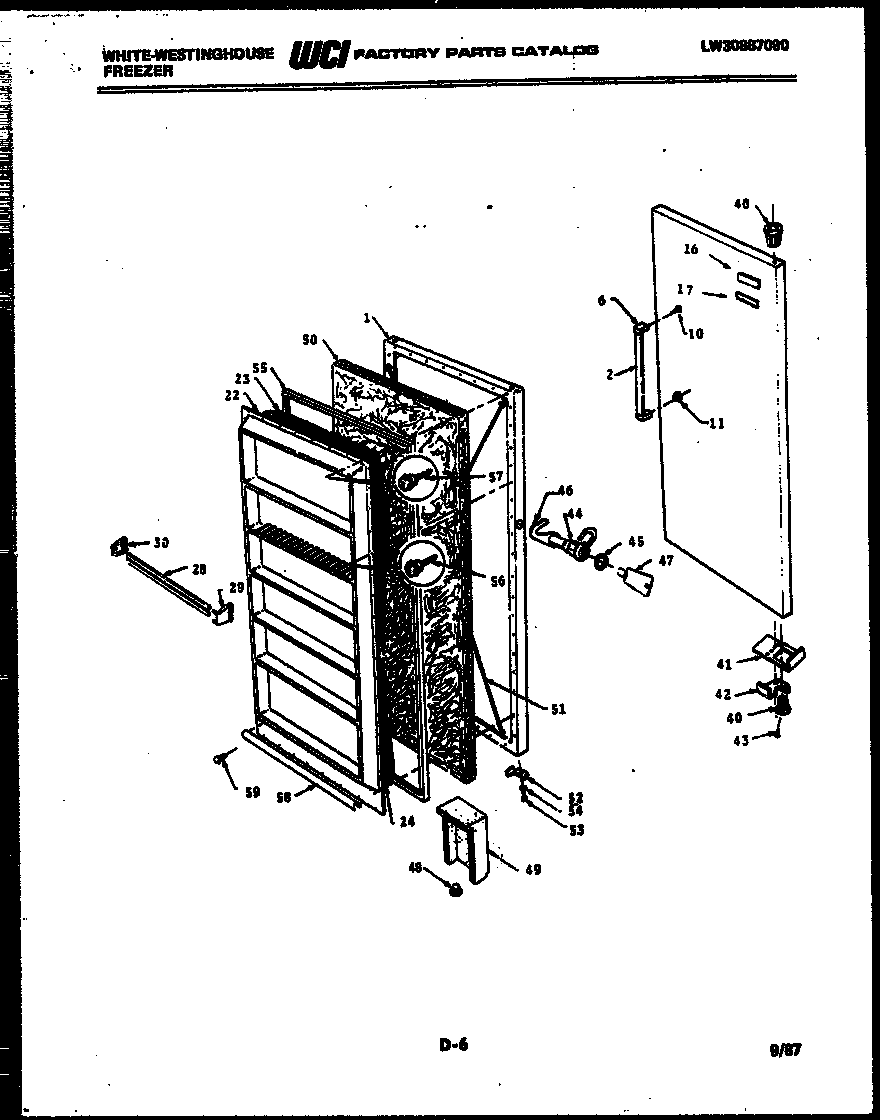

FU169JRD2 02 – DOOR PARTS

Products

Position	Product
1	WCI F129886-P
6	END CAP, TOP
7	WCI F124854
10	216858001 Frigidaire Refrigerator Screw
11	134716700 Frigidaire Washer
16	PLATE
17	WCI F124670
18	TAPE (NON-ILLUSTRATED)
22	WCI F128882-64
23	INSULATION, DIKES
24	WCI F85145
28	WCI F124676
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
40	WCI F84893
40	297006800 Frigidaire Refrigerator Bearing Hinge
41	BRACKET-DOOR STOP
42	WCI F124623
43	SCREW-STOP
44	WCI F300788
45	WASHER
46	WCI F124455
47	297147700 Frigidaire Freezer Plastic Door Key
49	AIR DUCT BREATHER
50	WCI F116277
51	WCI F129668
52	WCI F57880
53	SCREW, BRACKET (2)
54	WASHER BRACKET (2)
55	WCI F126006
57	SCREW-PANEL
58	WCI F99438
59	5303922007 Frigidaire Refrigerator Clip,Pkg 0F 24
