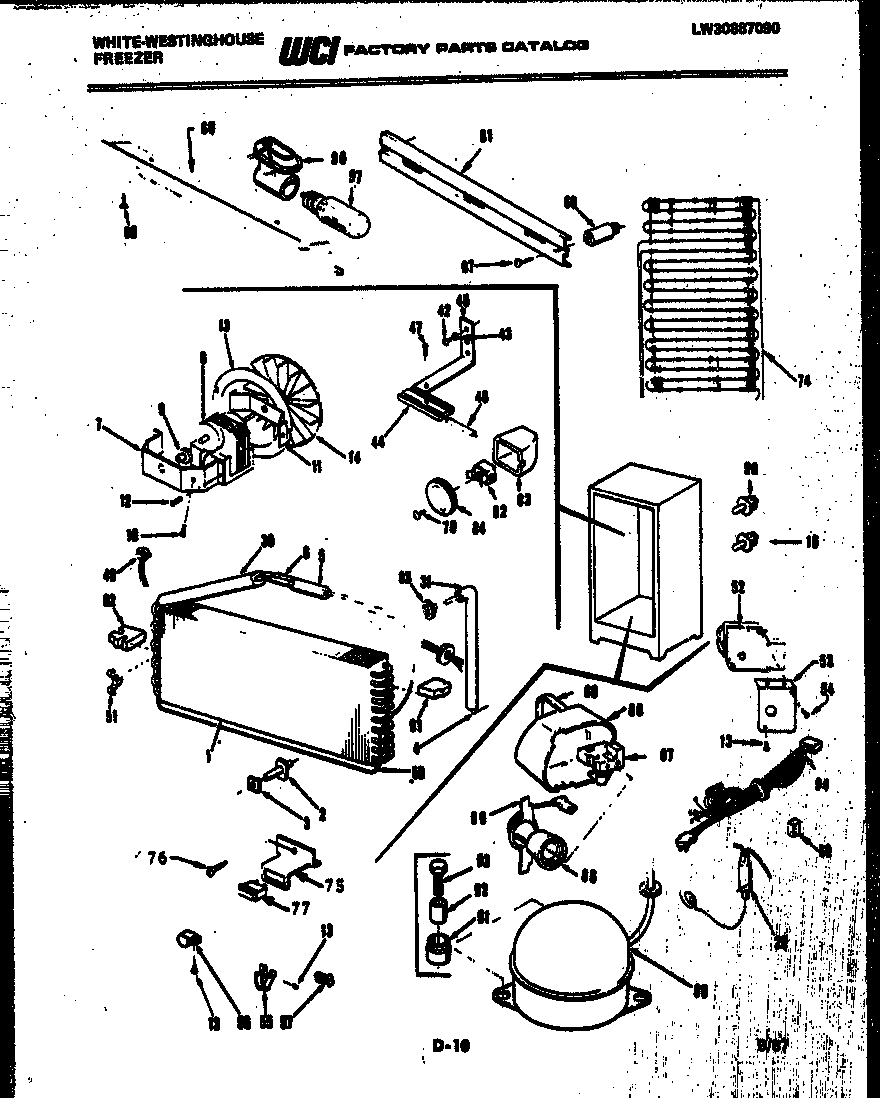

FU169JRW3 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI F126840
2	WCI F111731
3	SPACER
4	HEAT EXCHANGER
5	SPACER (2) (NON-ILLUSTRATED)
7	WCI F127112
8	FAN-MOTOR
9	G187559 Frigidaire Refrigerator Bushing
11	BRACKET FAN
13	ORIFICE RING
14	PADDLE WHEEL
15	WCI F300588
26	5303305677 Frigidaire Replacement Filter Dryer Filters
30	INSULATION
31	WCI F58148
42	216036601 Frigidaire Refrigerator Screw
43	WCI F95480
44	WCI F52940
45	WCI F88658
47	SCREW-CLAMP
48	TUBE
49	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
50	WCI F129752
51	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
52	5304518034 Frigidaire Refrigerator Defrost Timer
53	WCI F111694
54	WCI F52447
57	WCI F59872
61	WCI F111726
62	WCI F111727
63	WCI F92161
66	WCI F117151
67	216858001 Frigidaire Refrigerator Screw
68	SCREW (2)
69	WCI F112321
70	SCREW KNOB
74	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
75	WCI F116294
76	SCREW (5)
77	WCI F126159
80	WCI F300135
81	WCI F128843
82	WCI F126977
83	WCI F111759
84	KNOB
85	WCI F127169
86	WCI F127166
87	WCI F127165
89	5303006412 Frigidaire Refrigerator Cover Mounting Strap
90	CLIP
91	216498900 Frigidaire Refrigerator Grommet
92	SLEEVE
93	WCI F59211
94	WCI F128552
96	SOCKET
97	WCI F92472
98	5309918806 Frigidaire Refrigerator Light Switch Door
