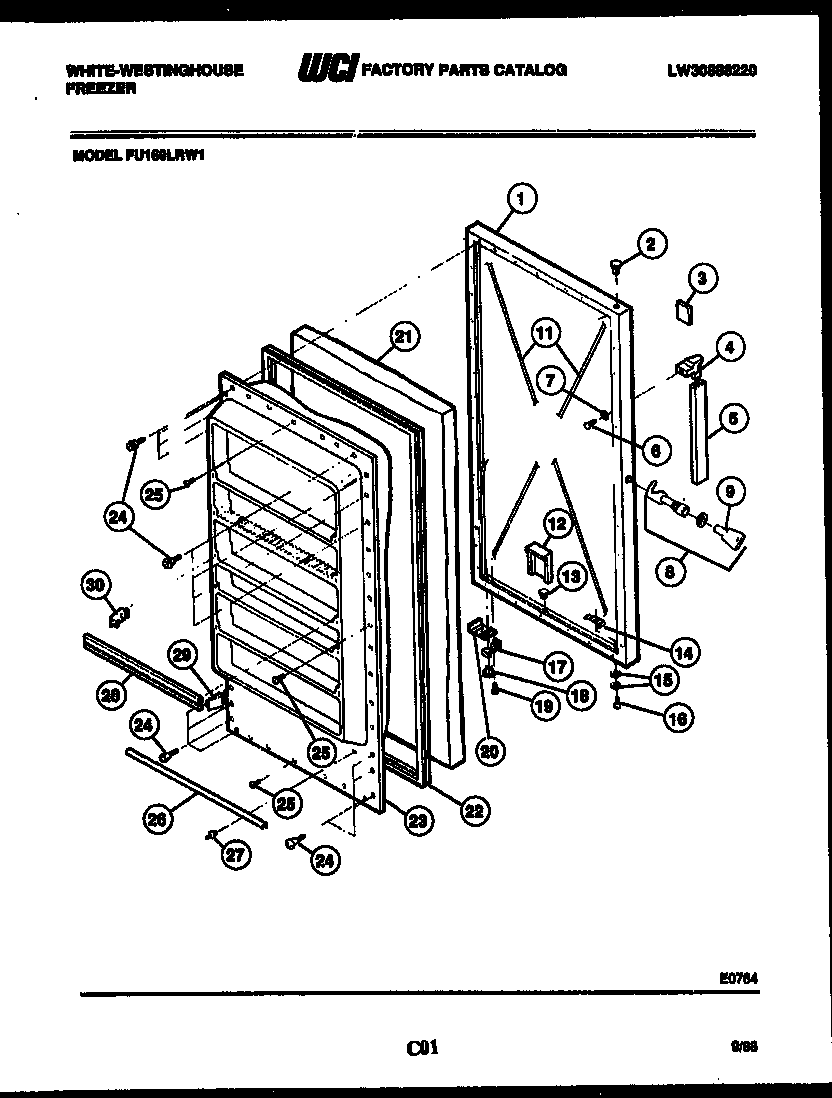

FU169LRW1 02 – DOOR PARTS

FU169LRW1 02 – DOOR PARTS

Written by

in

FU169LRW1 02 – DOOR PARTS

Products

PositionProduct
1WCI F129886-S
2WCI F84893
3NAMEPLATE
3AWCI 3200988
4END CAP, TOP
5WCI 3200979
6216858001 Frigidaire Refrigerator Screw
7134716700 Frigidaire Washer
8WCI F900260
9297147700 Frigidaire Freezer Plastic Door Key
10WCI F55689
11WIRE ADJUSTING
12AIR DUCT BREATHER
13WCI F19926
14WCI F57880
15WASHER BRACKET (2)
16SCREW, BRACKET (2)
17BRACKET-DOOR STOP
18STOP
19297006800 Frigidaire Refrigerator Bearing Hinge
20SCREW-STOP
21WCI F116277
22SEAL
23INNER PANEL
24SCREW-PANEL
26WCI F99439
275303212828 Frigidaire Refrigerator Primary Clip
28FRONT (5)
295303925377 Frigidaire Refrigerator Endcap Kit R & L
