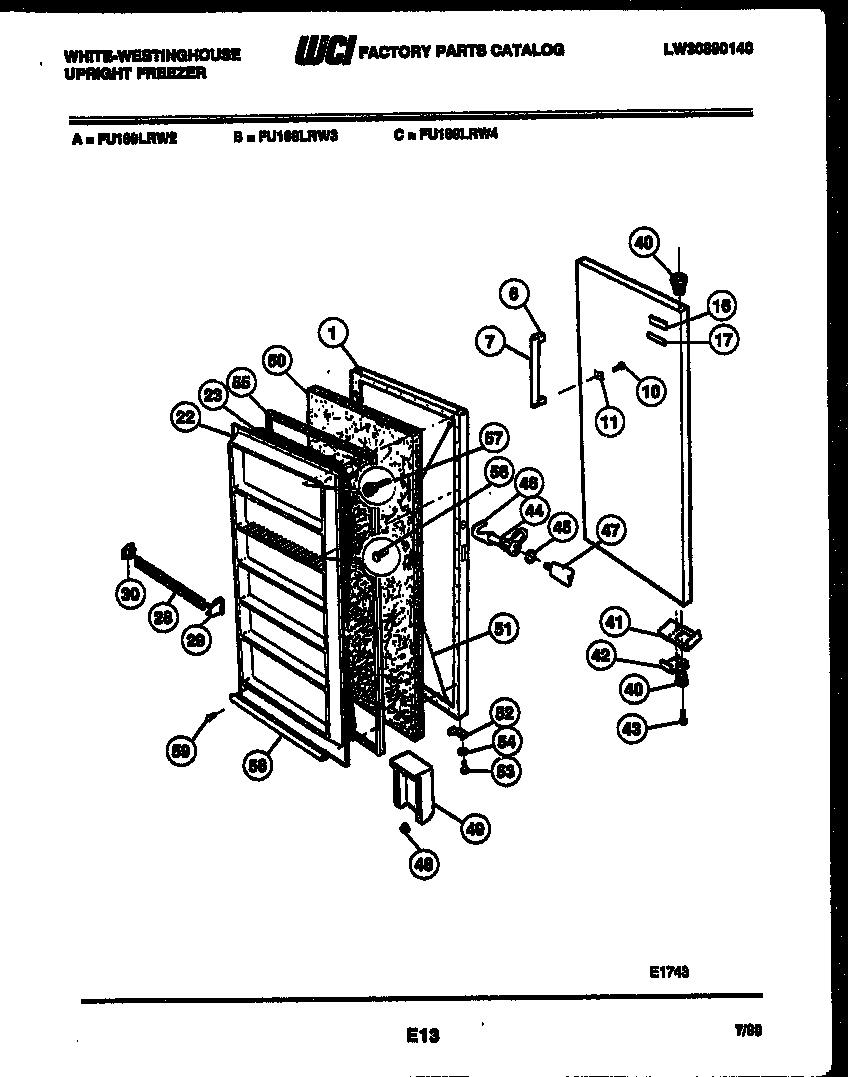

FU169LRW2 02 – DOOR PARTS

Products

Position	Product
1	WCI F0129886-S
6	SUPPORT
7	WCI 3200979
10	216858001 Frigidaire Refrigerator Screw
11	134716700 Frigidaire Washer
16	PLATE
17	WCI 3200988
22	WCI F128882-64
23	INSULATION (CUT TO SIZE)
28	FRONT (5)
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
40A	WASHER
40	297006800 Frigidaire Refrigerator Bearing Hinge
41	BRACKET-DOOR STOP
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI G190358
45	WASHER
46	WCI 3202005
47	297147700 Frigidaire Freezer Plastic Door Key
49	WCI F000128421
50	INSULATION-BULK
51	WIRE-DOOR ADJUSTMENT
52	WCI 05879859
53	SCREW, BRACKET (2)
54	WASHER, PLAIN, DOOR BRACKET
55	WCI 3206254
57	WCI 08009384
58	WCI 08016356
59	5303212828 Frigidaire Refrigerator Primary Clip

No products found
