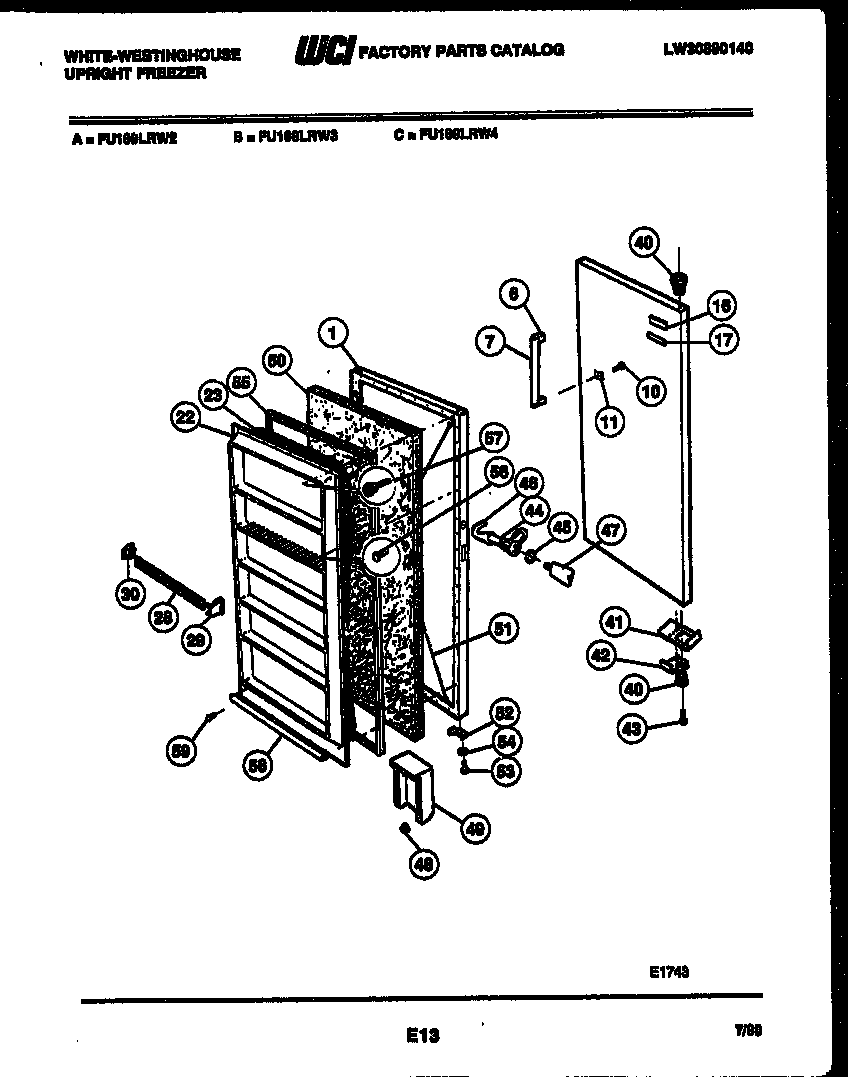

FU169LRW3 02 – DOOR PARTS

Products

Position	Product
1	WCI F0129886-S
6	SUPPORT
7	WCI 3200979
10	216858001 Frigidaire Refrigerator Screw
11	134716700 Frigidaire Washer
16	PLATE
17	WCI 3200988
22	WCI F128882-64
23	INSULATION (CUT TO SIZE)
28	FRONT (5)
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
40A	WASHER
40	297006800 Frigidaire Refrigerator Bearing Hinge
41	BRACKET-DOOR STOP
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI G190358
45	WASHER
46	WCI 3202005
47	297147700 Frigidaire Freezer Plastic Door Key
49	WCI F000128421
50	INSULATION-BULK
51	WIRE-DOOR ADJUSTMENT
52	WCI 05879859
53	SCREW, BRACKET (2)
54	WASHER, PLAIN, DOOR BRACKET
55	WCI 3206254
57	WCI 08009384
58	WCI 08016356
59	5303212828 Frigidaire Refrigerator Primary Clip
