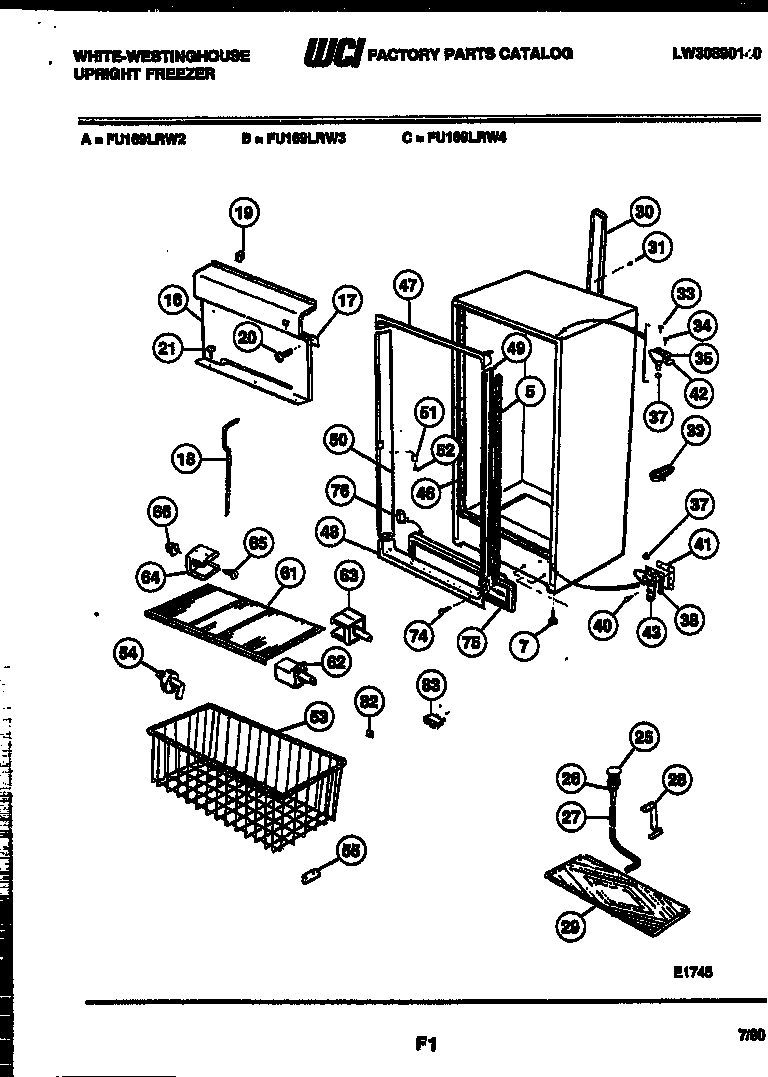

FU169LRW3 03 – CABINET PARTS

Products

Position	Product
5	INSULATION (CUT TO SIZE)
7	SCREW-LEVELING (4)
16	PANEL-EVAPORATOR
17	WCI 06599551
18	WCI 06599547
19	WCI 09948978
21	131168200 Frigidaire Dryer Screw
25	216503100 Frigidaire Refrigerator Screen-Drain
26	5304511843 Frigidaire Refrigerator Sleeve
27	5304512272 Frigidaire Hose Drain
28	WCI 06594637
29	WCI 08016387
30	WCI F91583-S
31	WCI 06594661
33	WCI 06593898
34	WCI 08037848
35	WCI 06593894
37	WASHER
37A	297006800 Frigidaire Refrigerator Bearing Hinge
38	WCI 08005499
39	CLOSER DOOR
40	154518001 Frigidaire Refrigerator Screw
41	WCI 06594550
42	WCI 08037946
43	WCI 06594549
43A	SPACER-BREAKER (8)
46	WCI 06594680
47	BREAKER-TOP
48	BREAKER-BOTTOM
49	BREAKER-HINGE SIDE
50	WCI 06599858
51	CATCH
52	216858001 Frigidaire Refrigerator Screw
53	5304497658 Frigidaire Refrigerator Basket
54	WCI 09948791
55	08009560 Frigidaire 0 Basket Glide
55A	WCI F129805
61	WCI 08037963
61A	SHELF-LOWER (1)
62	WCI 06594706
62A	WCI 06594707
63	WCI 06594584
64	WCI 5306594585
65	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
66	WCI 06594537
74	PIN (2)
75	PANEL
76	WCI F118003
82	5305878546 Frigidaire Refrigerator Bumper-Basket
83	SIGNAL LIGHT AMBER
