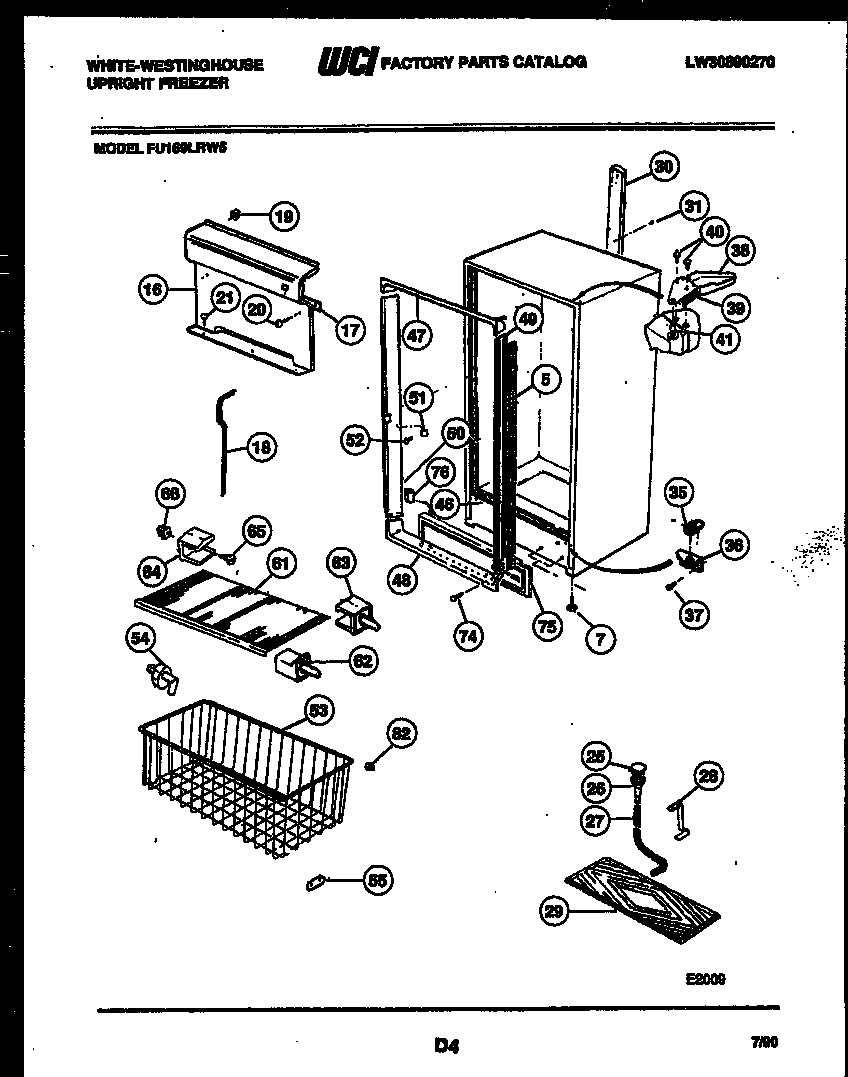

FU169LRW5 03 – CABINET PARTS

FU169LRW5 03 – CABINET PARTS

Written by

in

FU169LRW5 03 – CABINET PARTS

Products

PositionProduct
5INSULATION (CUT TO SIZE)
7SCREW-LEVELING (4)
16PANEL-EVAPORATOR
17WCI 06599547
18WCI 5306599551
19WCI 09948978
21131168200 Frigidaire Dryer Screw
25216503100 Frigidaire Refrigerator Screen-Drain
265304511843 Frigidaire Refrigerator Sleeve
275304512272 Frigidaire Hose Drain
28WCI 06594637
29WCI 5308016387
30WCI F91583-S
31WCI 06594661
35RAMP, DOOR
36WCI 5303210383
37154518001 Frigidaire Refrigerator Screw
38WCI 5303210384
39HINGE TOP
40SCREW
41WCI 5303210387
41ASPACER-BREAKER (8)
46WCI 06594680
47BREAKER-TOP
48BREAKER-BOTTOM
50WCI 5308005512
51WCI 5309949966
52216858001 Frigidaire Refrigerator Screw
535304497658 Frigidaire Refrigerator Basket
54WCI 09948791
55AWCI F129805
5508009560 Frigidaire 0 Basket Glide
61WCI 08037963
61ASHELF-LOWER (1)
62AWCI 5306594707
62WCI 5306594706
63WCI 5306594584
64WCI 5306594585
65Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
66WCI 06594537
74PIN (2)
75PANEL
76WCI 5300118003
825305878546 Frigidaire Refrigerator Bumper-Basket
