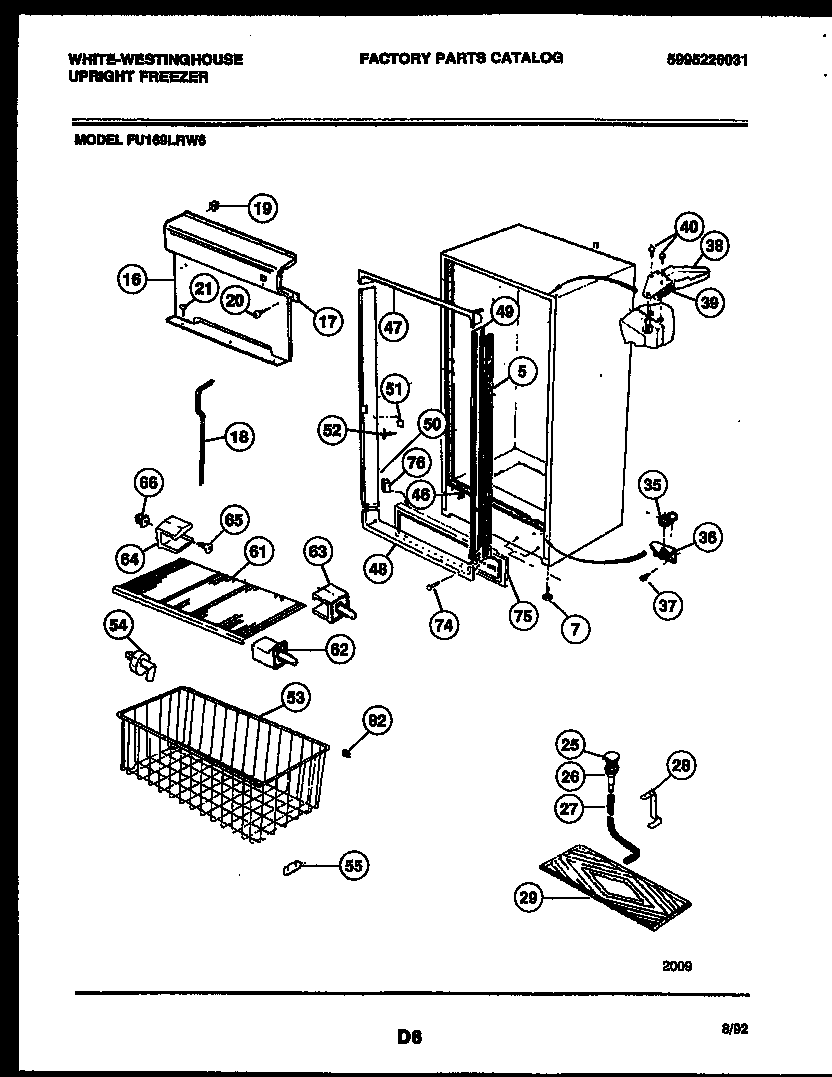

FU169LRW6 03 – CABINET PARTS

FU169LRW6 03 – CABINET PARTS

Written by

in

FU169LRW6 03 – CABINET PARTS

Products

PositionProduct
5INSULATION (CUT TO SIZE)
7SCREW-LEVELING (4)
16PANEL-EVAPORATOR
17WCI 06599547
18WCI 5306599551
19WCI 09948978
20216858001 Frigidaire Refrigerator Screw
21131168200 Frigidaire Dryer Screw
25216503100 Frigidaire Refrigerator Screen-Drain
265304511843 Frigidaire Refrigerator Sleeve
275304512272 Frigidaire Hose Drain
28WCI 06594637
29WCI 5308016387
35RAMP, DOOR
36WCI 5303210383
37154518001 Frigidaire Refrigerator Screw
38COVER, HINGE
39HINGE, TOP
40WCI 5303212937
40ASPACER-BREAKER (8)
46WCI 06594680
47BREAKER-TOP
48BREAKER-BOTTOM
49MOULDING-HINGE
50WCI 216014200
51WCI 216013600
52CLIP, U, LOCK
535304497658 Frigidaire Refrigerator Basket
54WCI 09948791
5508009560 Frigidaire 0 Basket Glide
55AWCI 5303288196
61WCI 08037963
61ASHELF-LOWER (1)
62WCI 5306594706
62AWCI 5306594707
63WCI 5306594584
64WCI 5306594585
65Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
66WCI 06594537
74FASTENER BASE PANEL
75PANEL
76WCI 5300118003
825305878546 Frigidaire Refrigerator Bumper-Basket
