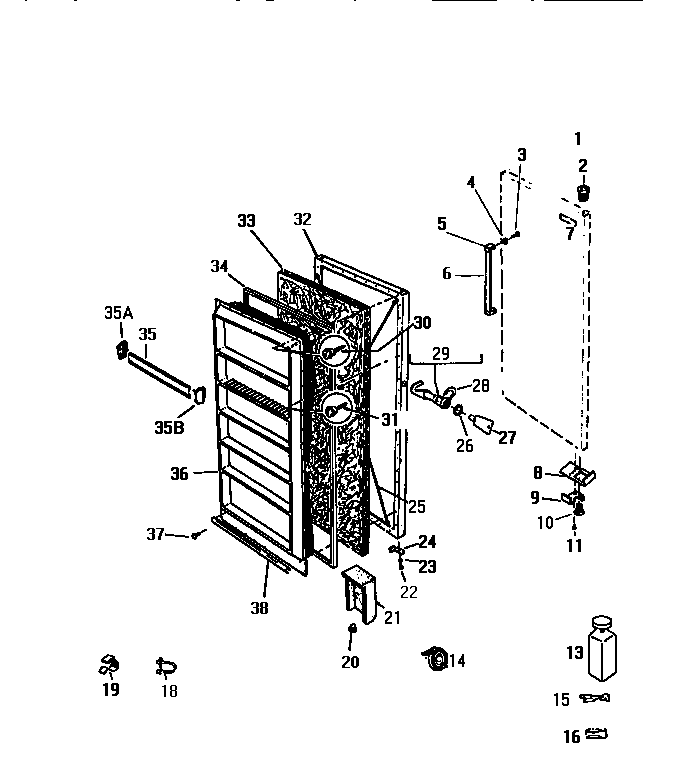

FU196JRW1 02 – DOOR

FU196JRW1 02 – DOOR

Written by

in

FU196JRW1 02 – DOOR

Products

PositionProduct
*97281WCI S900113
*97280WCI F124610
1WASHER
3WCI Q503165
4134716700 Frigidaire Washer
5END CAP TOP & BTM
6WCI Q277252
7NAMEPLATE
8BRACKET-DOOR STOP
9STO DOOR
10WCI F84893
11SCREW-STOP
13WCI Q49587
13TOUCH-UP PAINT, 1 OUNCE, ALMOND
145300168328 Frigidaire Refrigerator Liner Repair Epoxy Tape
15RECEPTACLE, STRAIGHT, 1/4“ BLADE TERMINAL (PKG. OF 12)
15RECEPTACLE, STRAIGHT, FOR 5/16“ BLADE TERM. (PKG. OF 12)
15RECEPTACLE, STRAIGHT, FOR 3/16“ BLADE TERM. (PKG. OF 12)
16WCI Q301296
18WCI Q502063
19WCI Q502207
21AIR DUCT BREATHER
22SCREW, BRACKET (2)
23WASHER BRACKET (2)
24WCI F57880
25WCI F57688-23
26WASHER
27297147700 Frigidaire Freezer Plastic Door Key
28CLIP, LOCK
29LOCK COMPRESSOR
30WCI F59900
31216858001 Frigidaire Refrigerator Screw
32WCI F120139-64
33WCI F116277
34WCI R901052
355303925377 Frigidaire Refrigerator Endcap Kit R & L
35WCI F124673
36WCI R901051
375303922007 Frigidaire Refrigerator Clip,Pkg 0F 24
38WCI F99438
