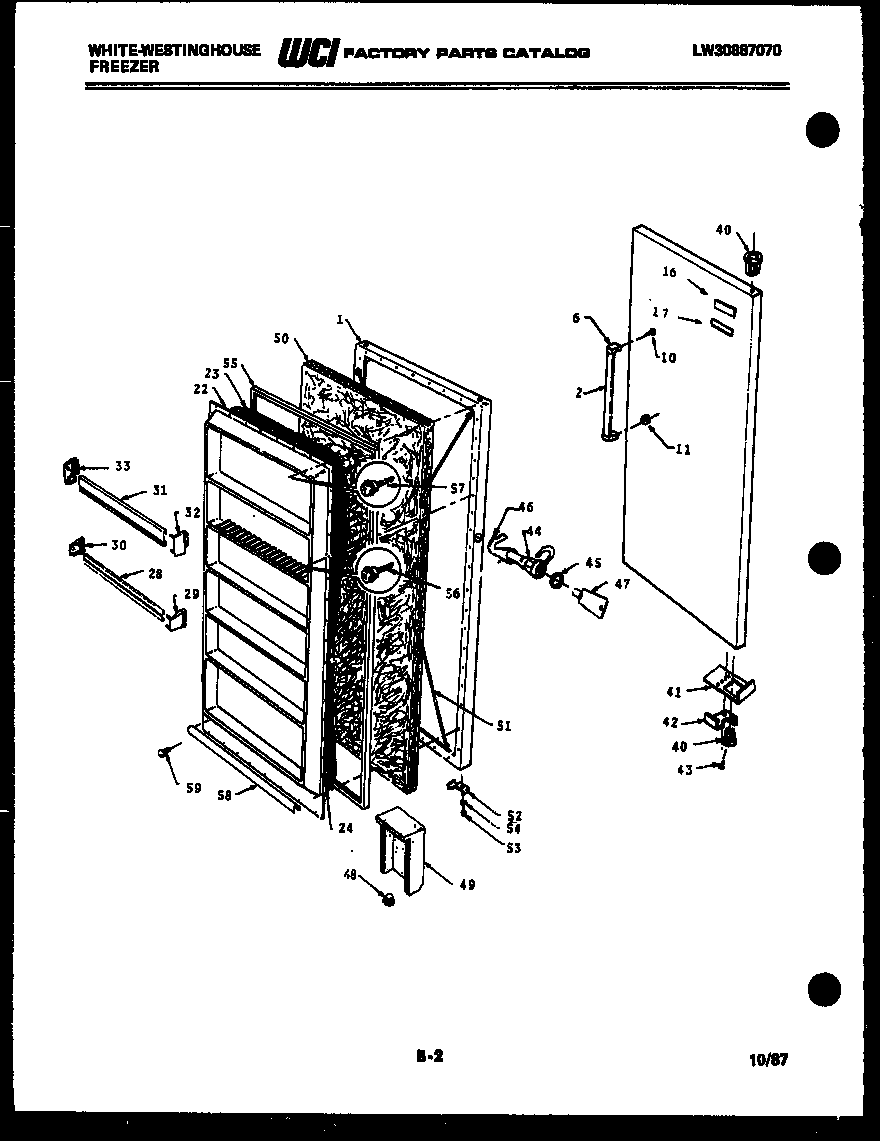

FU196JRW2 02 – DOOR PARTS

Products

Position	Product
1	WCI F129310-S
2	WCI F124854
6	END CAP, TOP
11	216858001 Frigidaire Refrigerator Screw
16	PLATE
17	INSERT
18	TAPE (NON-ILLUSTRATED)
22	WCI F124704-64
23	INSULATION, DIKES
28	WCI F129683
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
40	WCI F84893
40	297006800 Frigidaire Refrigerator Bearing Hinge
41	BRACKET-DOOR STOP
42	WCI F124623
43	SCREW-STOP
44	WCI F300788
45	WASHER
46	WCI F128903
47	297147700 Frigidaire Freezer Plastic Door Key
49	AIR DUCT BREATHER
50	WCI F126806
51	WIRE ADJUSTING
52	WCI F57880
53	SCREW, BRACKET (2)
54	WASHER BRACKET (2)
57	SCREW-PANEL
58	WCI F99438
59	5303922007 Frigidaire Refrigerator Clip,Pkg 0F 24
