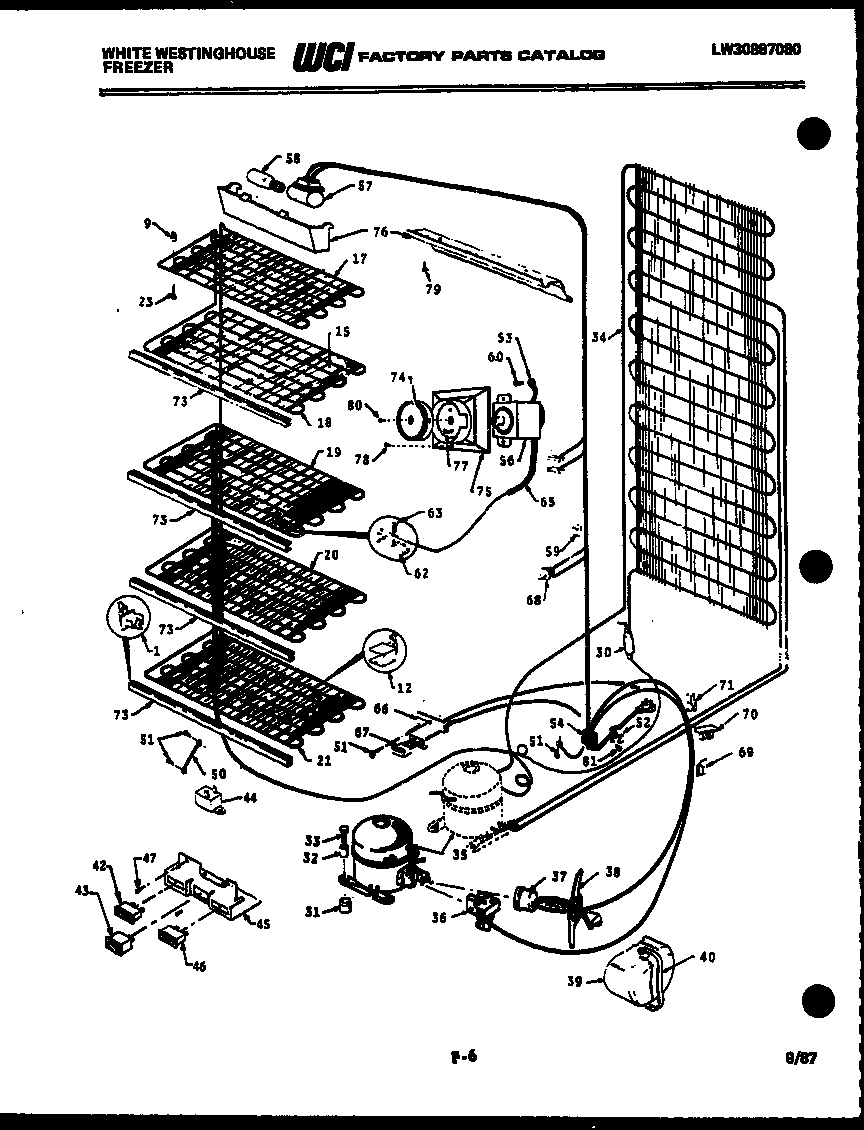

FU196JRW3 04 – SYSTEM AND ELECTRICAL PARTS

Products

PositionProduct
1297001600 Frigidaire Shelf Support
2297001500 Frigidaire Shelf Support
9SPCR-TOP GRID REAR (NON-ILLUSTRATED)
9SPCR-TOPGRID FRONT (2)
12WCI F117447
15WCI F125249
17TOP GRID
18WCI F300036
19SECOND SHELF
21WCI F300037
23WCI F126260
305303305677 Frigidaire Replacement Filter Dryer Filters
31216498900 Frigidaire Refrigerator Grommet
32SLEEVE
33WCI F59211
345300083897 Frigidaire Refrigerator Condenser P1 O/S2
35COMPRESSOR (NON-ILLUSTRATED)
36WCI F126878-2
37WCI F126879
38WCI F300749
405303006412 Frigidaire Refrigerator Cover Mounting Strap
42WCI F128520
43WCI F128517
44WCI F128518
45WCI F129965
50WCI F95424
51SCREW (5)
525304455846 Frigidaire Refrigerator Clamp
54WCI F128541
56WCI F126974
57WCI F125347
58WCI F92472
59WCI F112321
62WCI F96850
63SCREW-CLAMP
66WCI F116294
67WCI F126159
685309918806 Frigidaire Refrigerator Light Switch Door
70CLIP
73SHELF TRIM (3)
74WCI F128874
75WCI F128633
76WCI F128809
77SCREW CONTROL
78216036601 Frigidaire Refrigerator Screw
80SCREW KNOB
81216858001 Frigidaire Refrigerator Screw
