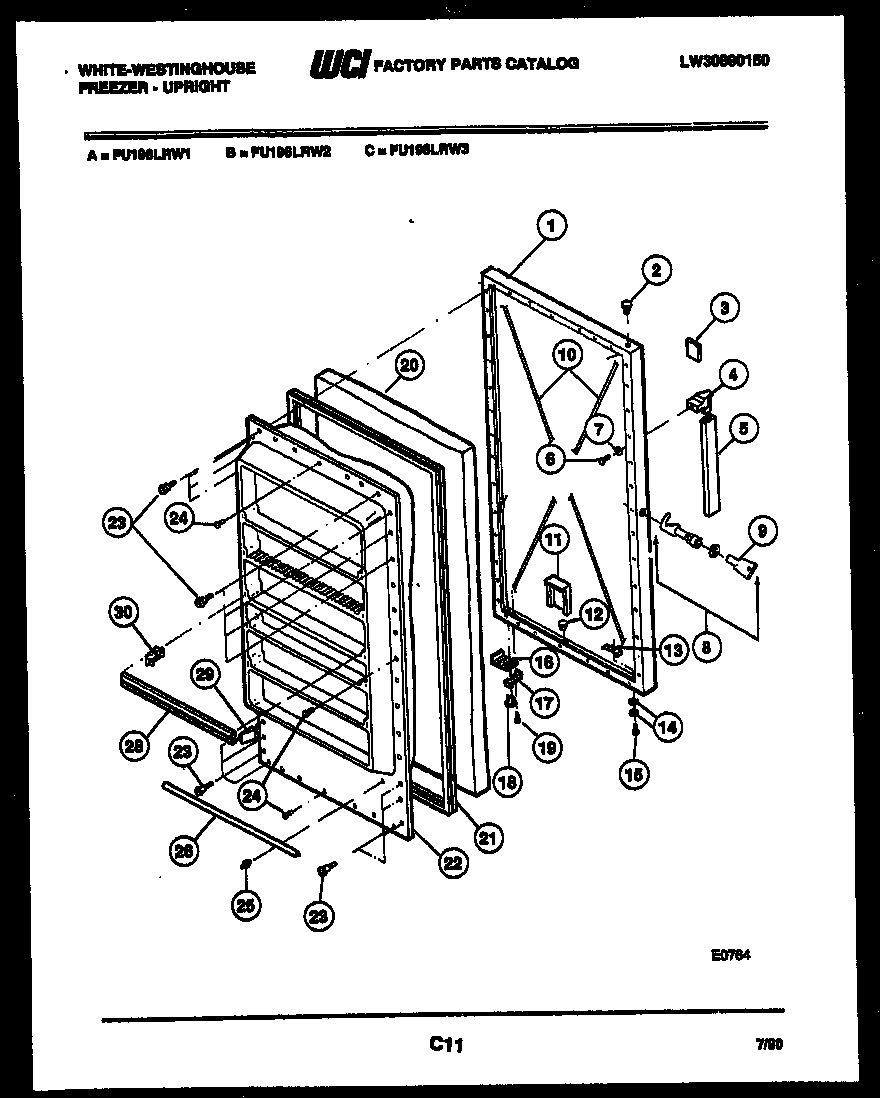

FU196LRW3 02 – DOOR PARTS

Products

Position	Product
1	PANEL-DOOR (WHITE)
2	WCI F84893
3A	INSERT
3	PLATE
4	END CAP, TOP
5	WCI 3200979
6	216858001 Frigidaire Refrigerator Screw
7	134716700 Frigidaire Washer
8	WCI G190358
9	297147700 Frigidaire Freezer Plastic Door Key
10	WIRE
11	AIR DUCT BREATHER
13	WCI F57880
14	WASHER BRACKET (2)
15	SCREW, BRACKET (2)
16	BRACKET-DOOR STOP
17	WCI F124623
18	297006800 Frigidaire Refrigerator Bearing Hinge
19	SCREW-STOP
20	WCI F116277
21	WCI 3206259
22	PNL DOOR INNER
23	SCREW-PANEL
25	5303212828 Frigidaire Refrigerator Primary Clip
26	WCI F99438
28	WCI 3201003
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
