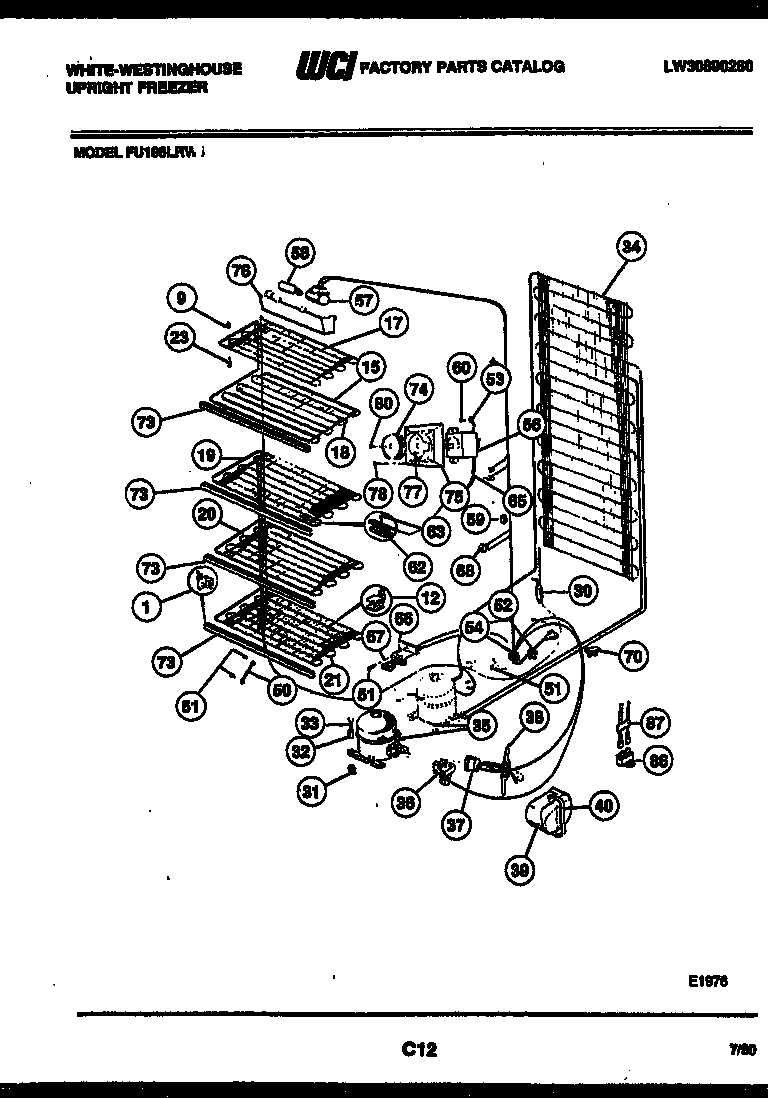

FU196LRW4 04 – SYSTEM AND ELECTRICAL PARTS

FU196LRW4 04 – SYSTEM AND ELECTRICAL PARTS

Written by

in

FU196LRW4 04 – SYSTEM AND ELECTRICAL PARTS

Products

PositionProduct
1A297001600 Frigidaire Shelf Support
9SPCR-TOPGRID FRONT (2)
9ASPACER-REAR
12WCI 09949960
15WCI 08010753
17WCI 08037974
18SHELF-EVAPORATOR
19WCI 08037976
21SHELF-EVAPORATOR
23SCREW
305303305677 Frigidaire Replacement Filter Dryer Filters
31216498900 Frigidaire Refrigerator Grommet
32SLEEVE-COMPRESSOR
33CREW COMPR MTG
345300083897 Frigidaire Refrigerator Condenser P1 O/S2
35COMPRESSOR W/ ELECTRICALS-SERVICE
36WCI 5303017753
37WCI 5308037789
405303006412 Frigidaire Refrigerator Cover Mounting Strap
50WCI 06594651
51WCI 08037851
525304455846 Frigidaire Refrigerator Clamp
53WIRE-GROUND, TEMP CONTROL
54HARNESS
56CONTROL TEMP
57SOCKET, LIGHT/LAMP
585304517886 Frigidaire Refrigerator Light
59RETAINER, WIRE, BREAKER
62CLAMP, CAP TUBE, COLD CONTROL
63SCREW, CLAMP, TRUSS HD CR, CONTROL
65TUBE
66BRACKET-SIGNAL LIGHT
67WCI 5308002706
685309918806 Frigidaire Refrigerator Light Switch Door
70WCI 06599553
73FRONT SHELF
74WCI 3200985
75HOUSING
76SHIELD
77SCREW, COVER CONTROL
78216036601 Frigidaire Refrigerator Screw
80WCI 09950853
86CAPACITOR
87WCI 5303091425
