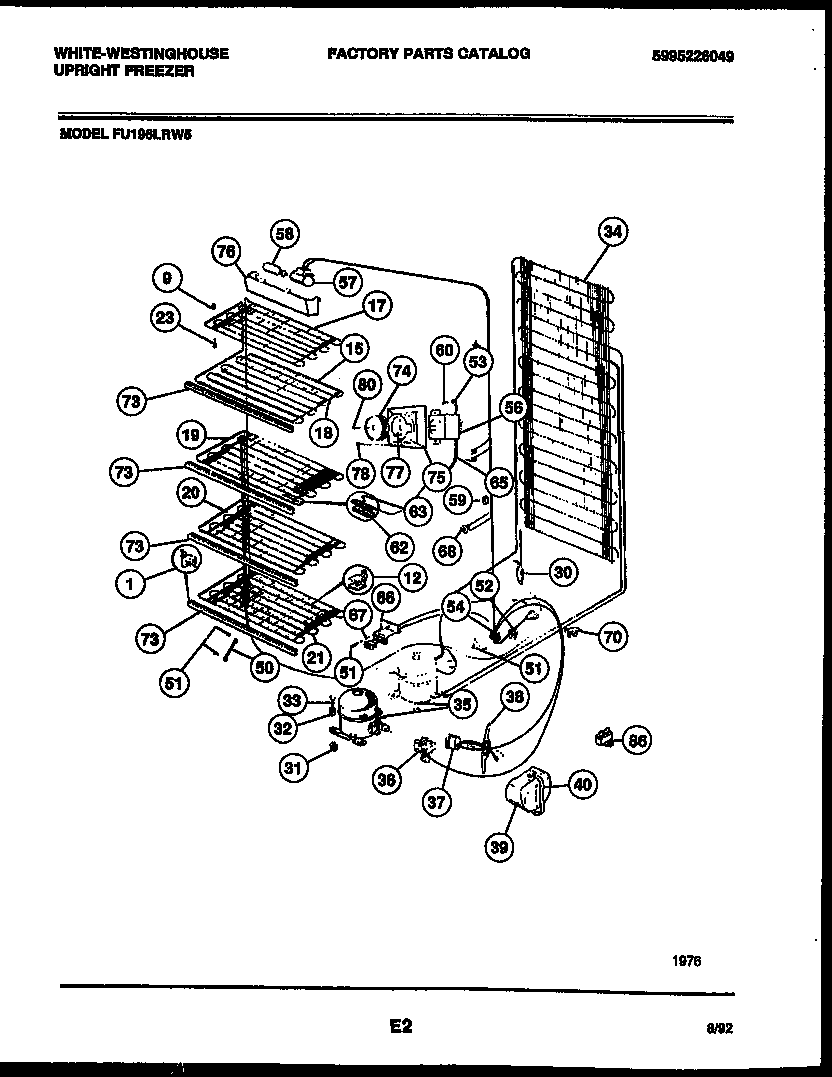

FU196LRW5 04 – SYSTEM AND ELECTRICAL PARTS

Products

Position	Product
1	297001600 Frigidaire Shelf Support
1A	297001500 Frigidaire Shelf Support
9A	SPACER-REAR
9	SPCR-TOPGRID FRONT (2)
12	WCI 09949960
15	WCI 5308010744
17	WCI 08037983
18	SHELF-EVAPORATOR
19	SHELF-EVAPORATOR
20	WCI 5308037984
21	SHELF-EVAPORATOR
23	SCREW
30	5303305677 Frigidaire Replacement Filter Dryer Filters
31	216498900 Frigidaire Refrigerator Grommet
32	SLEEVE-COMPRESSOR
33	CREW COMPR MTG
34	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
35	COMPRESSOR W/ ELECTRICALS-SERVICE
36	WCI 5303017753
37	WCI 5308037789
40	5303006412 Frigidaire Refrigerator Cover Mounting Strap
50	WCI 06594651
51	WCI 08037851
52	5304455846 Frigidaire Refrigerator Clamp
53	WIRE-GROUND, TEMP CONTROL
54	HARNESS
56	WCI 216023000
57	SOCKET, LIGHT/LAMP
58	5304517886 Frigidaire Refrigerator Light
59	RETAINER, WIRE, BREAKER
62	CLAMP, CAP TUBE, COLD CONTROL
63	SCREW, CLAMP, TRUSS HD CR, CONTROL
65	TUBE
66	WCI 216009101
67	WCI 5308002706
68	5309918806 Frigidaire Refrigerator Light Switch Door
70	WCI 06599553
73	SHELF TRIM (4)
74	WCI 216008602
74A	WCI 5303291335
75	HOUSING
76	SHIELD
77	SCREW, COVER CONTROL
78	216036601 Frigidaire Refrigerator Screw
80	WCI 09950853
86	WCI 216134800
