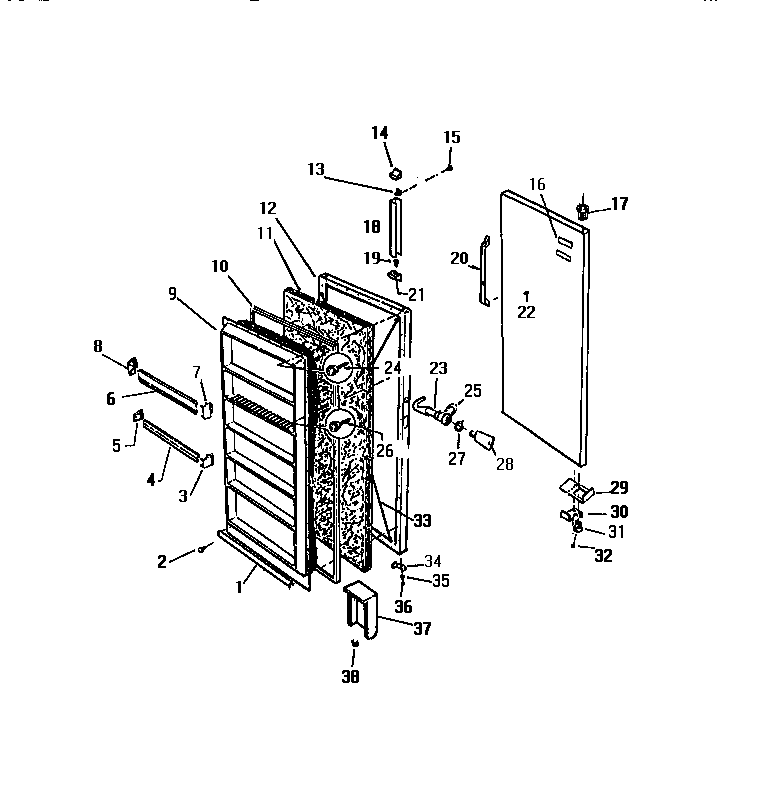

FU199ERD1 02 – DOOR

Products

Position	Product
1	WCI F99439
2	5303922007 Frigidaire Refrigerator Clip,Pkg 0F 24
3	5303925377 Frigidaire Refrigerator Endcap Kit R & L
4	WCI F124676
6	FRONT
7	WCI F112630
8	WCI F112631
9	WCI F124701-64
10	WCI F122543-4
11	WCI F116277
12	WCI F119928-50
13	RETAINER
14	WCI F124647
16	WCI R304001
18	WCI R465701
19	SCREW (2)
21	END CAP, BOTTOM
22	131168200 Frigidaire Dryer Screw
23	LOCK COMPRESSOR
24	SCREW (16)
25	CLIP, LOCK
26	SCREW (24)
27	WASHER
28	297147700 Frigidaire Freezer Plastic Door Key
29	BRACKET-DOOR STOP
30	STO DOOR
31	WCI F84893
32	SCREW-STOP
33	WCI F57688-23
34	WCI F57880
35	WASHER BRACKET (2)
36	SCREW, BRACKET (2)
37	AIR DUCT BREATHER
