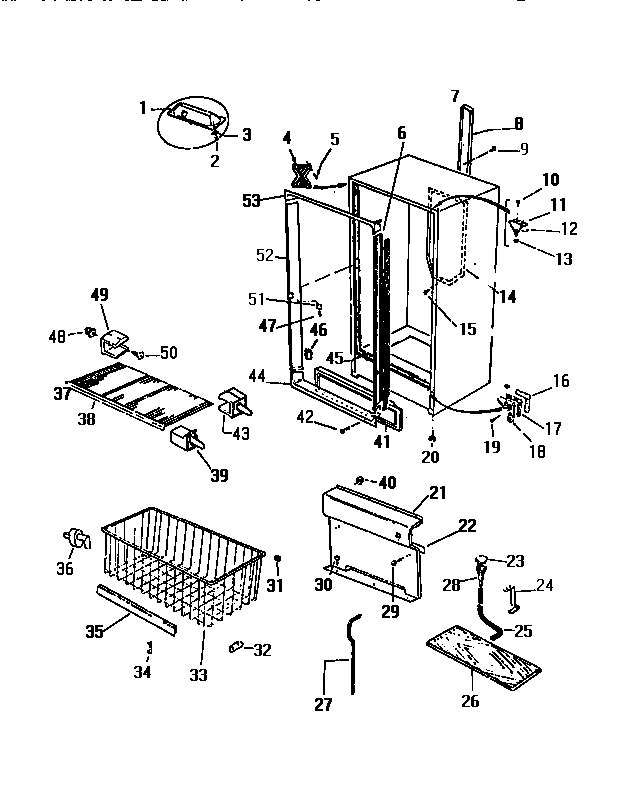

FU199ERD2 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

Products

Position	Product
*09641	INSULATION
*09640	WCI F121418-50
1	HOUSING
2	SCREW (2)
3	WCI F95480
5	WCI F111598
6	WCI F111247-64
7	SPACER, TOP BREAKER (2)
8	WCI F91583-64
10	SCREW-HINGE-FRONT
11	WCI F93193
12	PLATE-TOP
13	BEARING, HINGE (3)
16	WCI F84948
17	WCI F120978
18	WCI F84943
19	154518001 Frigidaire Refrigerator Screw
20	LEG
21	WCI F111767
22	WCI F111781
23	216503100 Frigidaire Refrigerator Screen-Drain
24	WCI F93775
25	5304512272 Frigidaire Hose Drain
26	DRAIN PAN
27	WCI F111783
28	5304511843 Frigidaire Refrigerator Sleeve
30	WCI F96849
31	5305878546 Frigidaire Refrigerator Bumper-Basket
32	08009560 Frigidaire 0 Basket Glide
33	WCI F124618
34	WCI F119952
35	FRONT
36	BUMPER-BASKET
37	WCI F117075-2
38	WCI F117075-1
39	WCI 110932
39B	WCI F110931
40	WCI F50144
41	WCI F120783-1
42	WCI F118001
43	SUPPORT (4)
44	WCI F85127-64
45	WCI F99412
46	WCI F118003
47	216858001 Frigidaire Refrigerator Screw
48	INSERT-NUT (2)
49	WCI F86224
50	WCI F50837
51	WCI F117634
52	WCI F113764-64
53	WCI F85126-64
