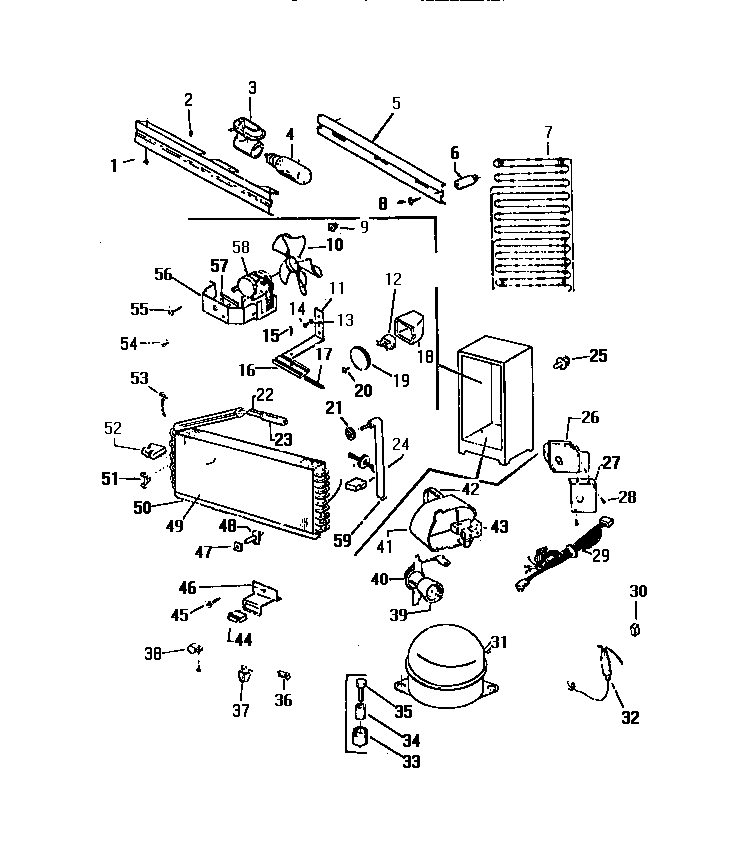

FU199ERD2 04 – SYSTEMS

Products

Position	Product
1	SCREW (2)
2	WCI F97512-302
3	SOCKET
4	WCI C501867
5	WCI F124663
6	WCI F117151
7	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
8	WCI F12598
9	WCI F50144
10	FAN-BLADE
11	WCI F88658
12	WCI F113900
13	WCI F95480
14	216036601 Frigidaire Refrigerator Screw
15	SCREW-CLAMP
16	WCI F52940
17	TUBE
18	WCI F111759
19	WCI F113903
20	SCREW KNOB
21	WCI F92161
22	SLEEVE
23	WCI F96886-1
24	WCI F111779
25	5303289051 Frigidaire Refrigerator Light Switch
26	215846604 Frigidaire Refrigerator Defrost Timer
27	WCI F111694
28	WCI F52447
29	WCI F119862
30	WCI F112321
31A	COMPRESSOR, 4 X 6 1/2“ MTG TO 7 X 7 MTG
31	COMPRESSOR W/OVLD-RELAY
32	DRIER-REGULAR
32	WCI R900125
33	216498900 Frigidaire Refrigerator Grommet
34	SLEEVE
35	WCI F59211
36	WCI F59872
37	5304455846 Frigidaire Refrigerator Clamp
38	CLIP
39	WCI R128038
40	WCI F99031
41	COVER
42	5303006412 Frigidaire Refrigerator Cover Mounting Strap
43	WCI R128039
44	WCI F115065
45	SCREW (5)
46	WCI F116294
47	WCI F111730
48	WCI F111731
49	WCI F112197
50	HEATER
51	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
52	WCI F111780
53	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
54	SCREW-MOTOR
55	216858001 Frigidaire Refrigerator Screw
56	WCI F96510
57	WCI F90503-2
58	WCI F116167
59	WCI R112395
