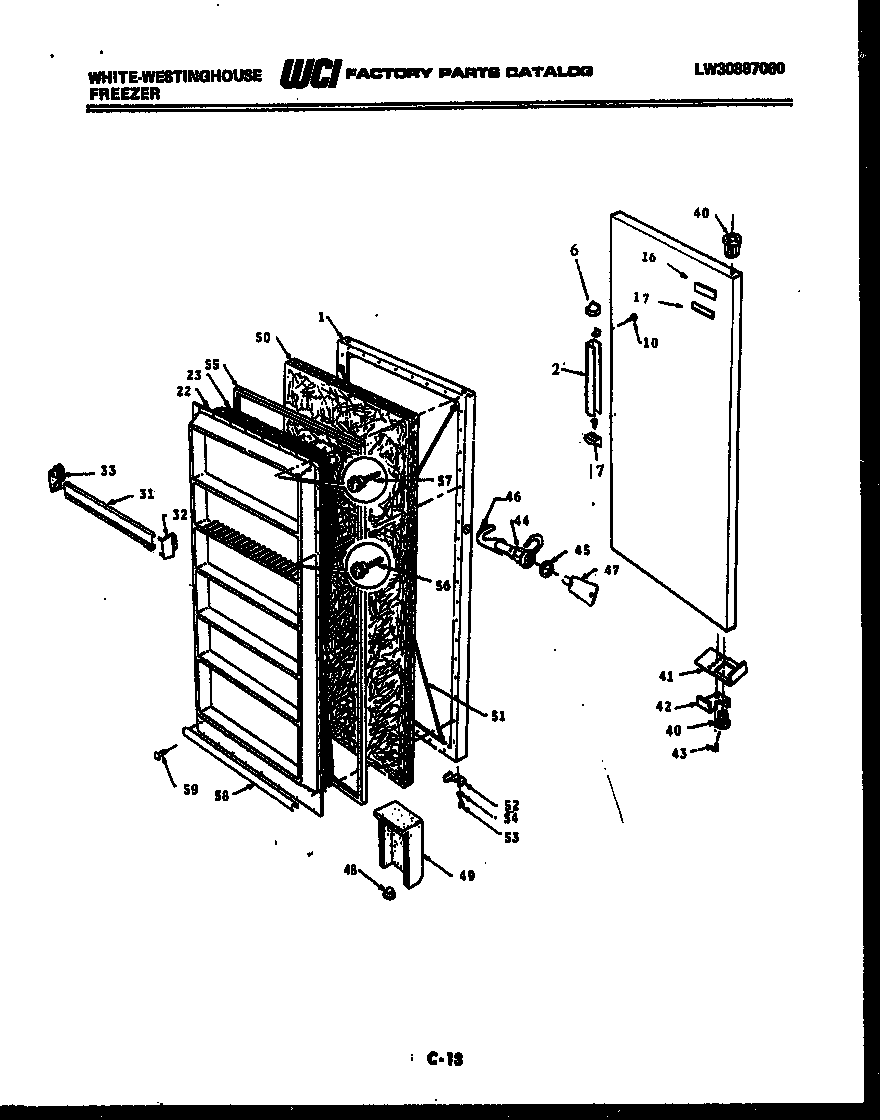

FU199JRD2 02 – DOOR PARTS

Products

Position	Product
1	WCI F119928-P
2	WCI F124665
6	WCI F124647
7	END CAP, BOTTOM
10	131168200 Frigidaire Dryer Screw
16	PLATE
17	WCI F124670
18	RETAINER
20	TAPE (NON-ILLUSTRATED)
22	PNL DOOR INNER
23	WCI F85187-50
31	FRONT
32	WCI F112630
33	WCI F112631
40	297006800 Frigidaire Refrigerator Bearing Hinge
40	WCI F84893
41	BRACKET-DOOR STOP
42	WCI F124623
43	SCREW-STOP
44	WCI F300788
45	WASHER
46	WCI F124455
47	297147700 Frigidaire Freezer Plastic Door Key
49	AIR DUCT BREATHER
50	WCI F116271
51	WIRE
52	WCI F57880
53	SCREW, BRACKET (2)
54	WASHER BRACKET (2)
55	WCI F126004
56	216858001 Frigidaire Refrigerator Screw
57	SCREW-PANEL
58	WCI F99438
59	5303922007 Frigidaire Refrigerator Clip,Pkg 0F 24
