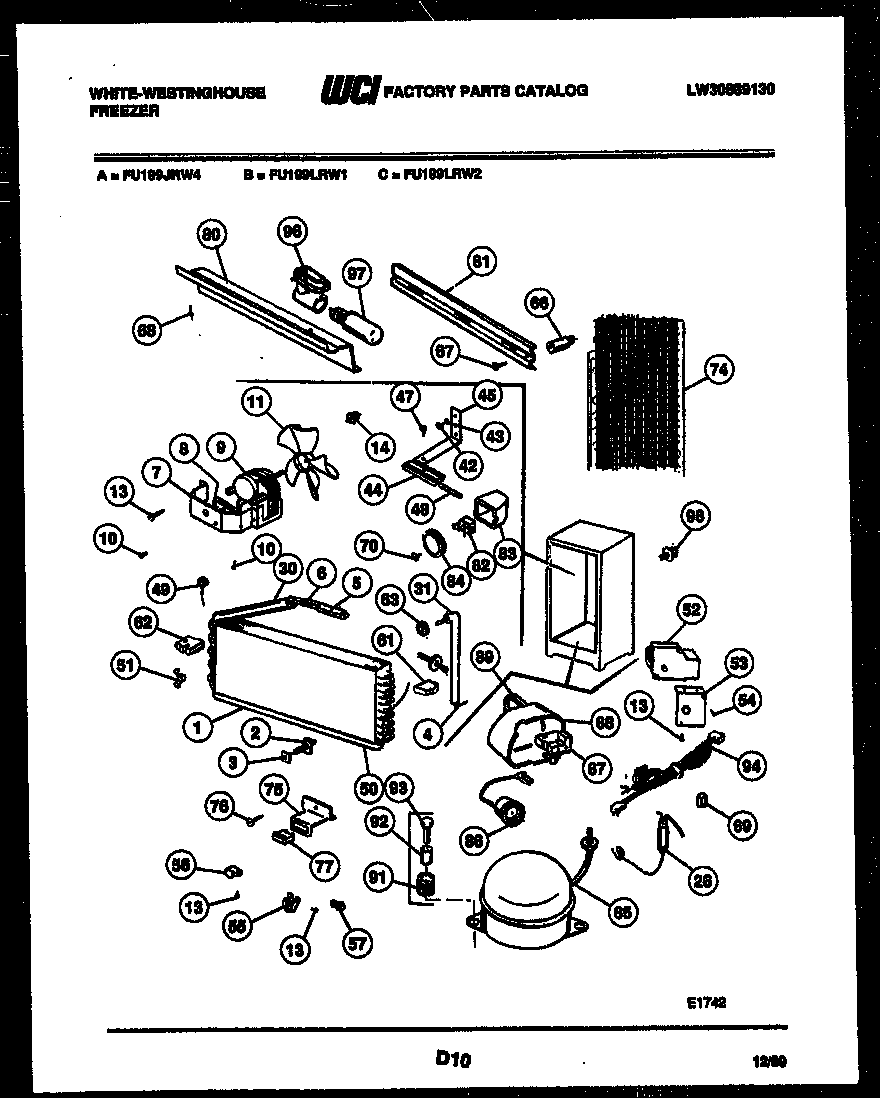

FU199JRW4 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

FU199JRW4 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FU199JRW4 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI 3200705
2WCI 06599544
3WCI 08013198
4WCI 3017673
5WCI F96886-1
6SLEEVE-EVAPORATOR TUBING (2)
7WCI 08013207
8WCI G164002
9FAN-MOTOR
10SCREW-MOTOR
11WCI 09948800
14WCI 09948978
265303305677 Frigidaire Replacement Filter Dryer Filters
30WCI 06594625
31WCI 09948773
42216036601 Frigidaire Refrigerator Screw
43WCI F95480
44WCI 05878562
45WCI 06594601
47SCREW-CLAMP
48TUBE
495303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
50WCI 06599535
515308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
525304518034 Frigidaire Refrigerator Defrost Timer
53WCI 08016580
54SCREW
555304455846 Frigidaire Refrigerator Clamp
56WCI 06599553
57WCI 05878556
61WCI 06599533
62WCI 3200707
63WCI 06594629
66WCI 08000456
67216858001 Frigidaire Refrigerator Screw
68WCI F00012236
69RETAINER, WIRE, BREAKER
70WCI 09950853
745300083897 Frigidaire Refrigerator Condenser P1 O/S2
80WCI 08037968
81WCI 3200989
82WCI 08037961
83WCI 06599543
84WCI 08013197
85COMPR W/ ELECT
86WCI 3200957
87WCI 3017753
895303006412 Frigidaire Refrigerator Cover Mounting Strap
91216498900 Frigidaire Refrigerator Grommet
92WCI 06594529
93CREW COMPR MTG
94WCI 08016376
96WCI G136117
975304517886 Frigidaire Refrigerator Light
985309918806 Frigidaire Refrigerator Light Switch Door
