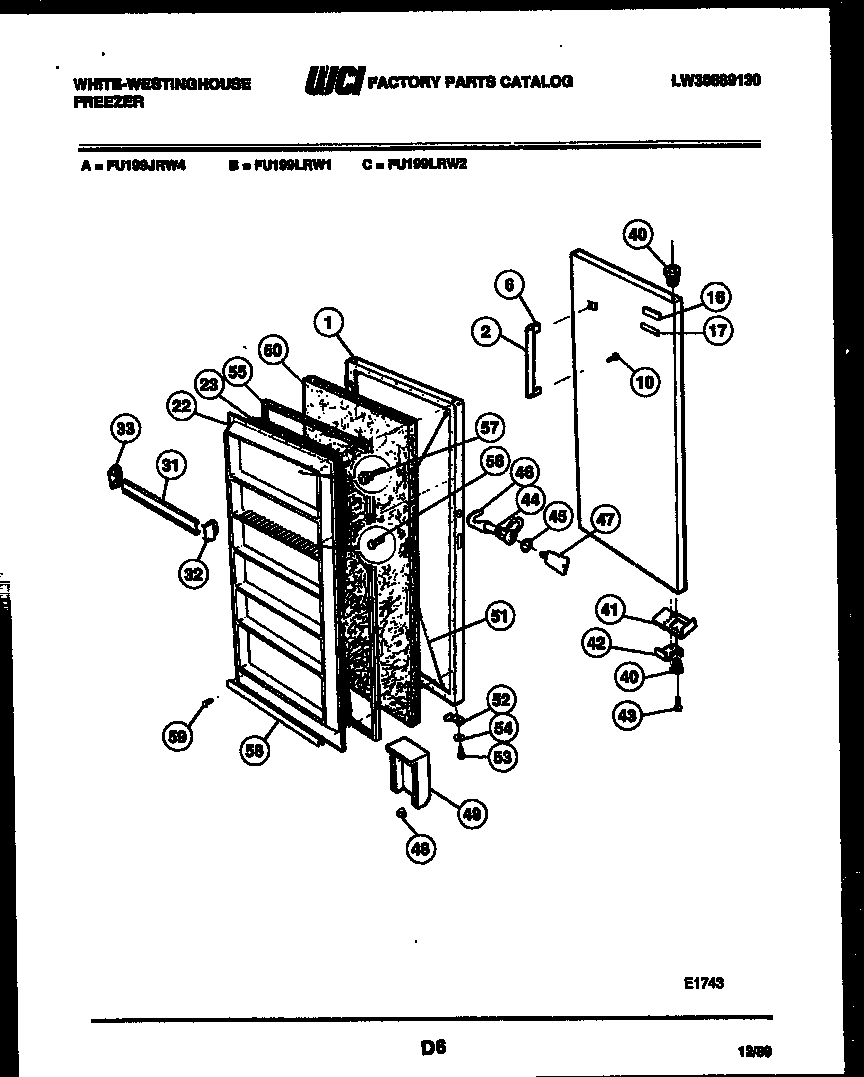

FU199LRW2 02 – DOOR PARTS

Products

Position	Product
1	WHITE
2	WCI 3201007
6A	END CAP, BOTTOM
6	WCI F124647
10	131168200 Frigidaire Dryer Screw
16	PLATE
17	WCI 3200988
22	PNL DOOR INNER
23	INSULATION (CUT TO SIZE)
31	WCI 3201008
32	END CAP-RH (5)
33	WCI 09948971
40A	WASHER
40	297006800 Frigidaire Refrigerator Bearing Hinge
41	BRACKET-DOOR STOP
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI G190358
45	WASHER
46	WCI 3202005
47	297147700 Frigidaire Freezer Plastic Door Key
49	WCI F000128421
50	INSULATION-BULK
51	WCI 08037981
52	WCI 05879859
53	SCREW, BRACKET (2)
54	WASHER, PLAIN, DOOR BRACKET
55	WCI 3201004
56	216858001 Frigidaire Refrigerator Screw
57	WCI 08009384
58	WCI 08016356
59	5303212828 Frigidaire Refrigerator Primary Clip
