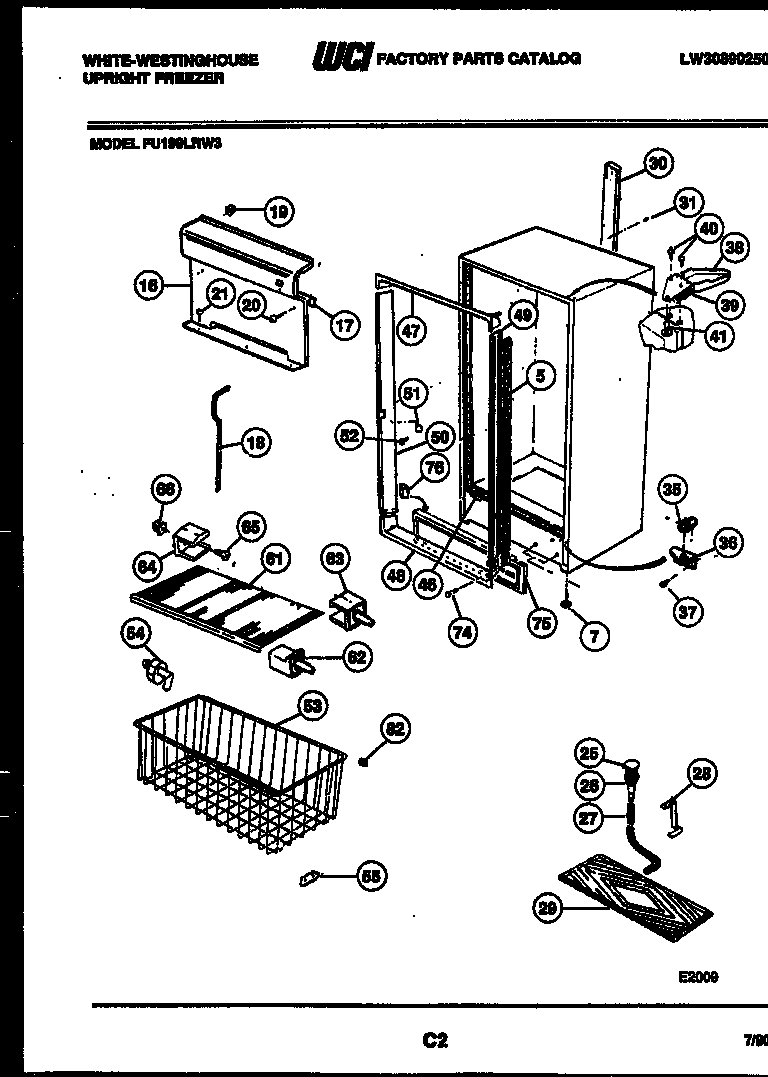

FU199LRW3 03 – CABINET PARTS

FU199LRW3 03 – CABINET PARTS

Written by

in

FU199LRW3 03 – CABINET PARTS

Products

PositionProduct
5INSULATION (CUT TO SIZE)
7SCREW-LEVELING (4)
16PANEL-EVAPORATOR
17WCI 06599547
18WCI 06599551
19WCI 09948978
21131168200 Frigidaire Dryer Screw
25216503100 Frigidaire Refrigerator Screen-Drain
265304511843 Frigidaire Refrigerator Sleeve
275304512272 Frigidaire Hose Drain
28WCI 06594637
29WCI 08016387
30WCI F91583-S
31WCI 06594661
35RAMP, DOOR
36WCI 5303210383
37154518001 Frigidaire Refrigerator Screw
38WCI 5303210384
39HINGE TOP
40SCREW
41WCI 5303210387
46WCI 06594680
47WCI 06594561
48WCI 06594562
49BREAKER-HINGE SIDE
50WCI 06599858
51CATCH
52216858001 Frigidaire Refrigerator Screw
53WCI 08010202
54WCI 09948791
5508009560 Frigidaire 0 Basket Glide
61WCI 08037996
61SHELF-LOWER (3)
62WCI 06594706
62WCI 06594707
63WCI 06594584
64WCI 06594585
65Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
66WCI 06594537
74PIN (2)
75PANEL
76WCI F118003
79HANDLE
80WCI 09950862
825305878546 Frigidaire Refrigerator Bumper-Basket
