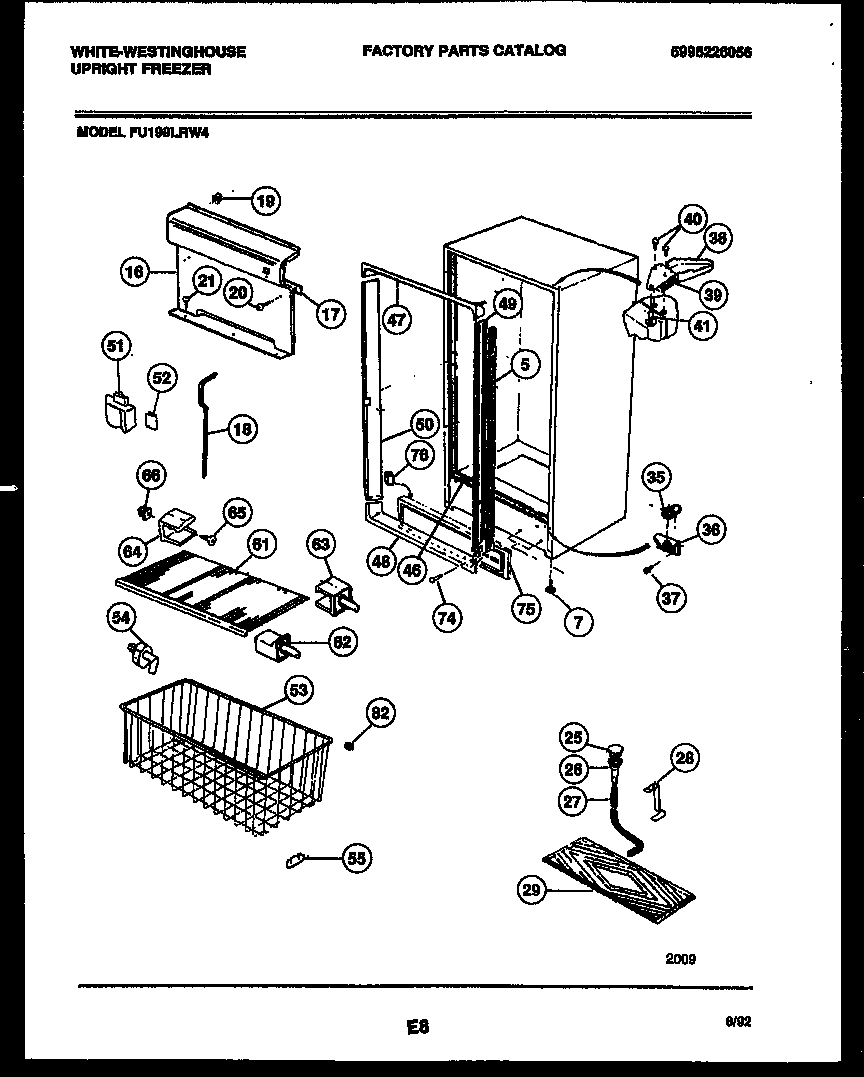

FU199LRW4 03 – CABINET PARTS

FU199LRW4 03 – CABINET PARTS

Written by

in

FU199LRW4 03 – CABINET PARTS

Products

PositionProduct
5INSULATION (CUT TO SIZE)
7SCREW-LEVELING (4)
16PANEL-EVAPORATOR
17WCI 06599547
18WCI 06599551
19WCI 09948978
20216858001 Frigidaire Refrigerator Screw
21131168200 Frigidaire Dryer Screw
25216503100 Frigidaire Refrigerator Screen-Drain
265304511843 Frigidaire Refrigerator Sleeve
275304512272 Frigidaire Hose Drain
28WCI 06594637
29WCI 5308016387
35RAMP, DOOR
36WCI 5303210383
37154518001 Frigidaire Refrigerator Screw
38COVER, HINGE
39HINGE, TOP
40WCI 5303212937
46WCI 06594680
47WCI 06594561
48WCI 06594562
49WCI 5303280424
50WCI 216014300
51WCI 216013600
52CLIP, U, LOCK
53WCI 08010202
54WCI 09948791
5508009560 Frigidaire 0 Basket Glide
61WCI 08037996
61ASHELF-LOWER (3)
62AWCI 06594707
62WCI 06594706
63WCI 06594584
64WCI 06594585
65Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
66WCI 06594537
74FASTENER BASE PANEL
75PANEL
76WCI 5300118003
79HANDLE
80WCI 09950862
825305878546 Frigidaire Refrigerator Bumper-Basket
