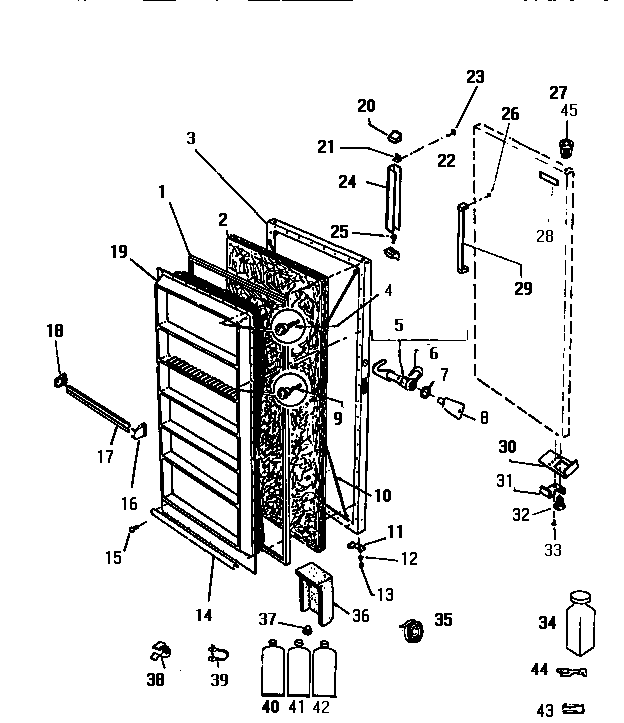

FU211JRW1 02 – DOOR

Products

Position	Product
*28240	WCI S900113
2	WCI F116277
3	WCI R901065
4	SCREW (16)
5	LOCK COMPRESSOR
6	CLIP, LOCK
7	WASHER
8	297147700 Frigidaire Freezer Plastic Door Key
9	SCREW (24)
10	WCI F57688-24
11	WCI F57880
12	WASHER BRACKET (2)
13	SCREW, BRACKET (2)
14	WCI F99438
15	5303922007 Frigidaire Refrigerator Clip,Pkg 0F 24
16	5303925377 Frigidaire Refrigerator Endcap Kit R & L
17	WCI F91564-31
19	WCI R901067
21	WCI 188C433H01
22	END CAP TOP & BTM
23	131168200 Frigidaire Dryer Screw
25	SCREW (2)
26	WCI Q503165
27	WASHER
28	WCI R304001
29	WCI Q277252
30	BRACKET-DOOR STOP
31	STO DOOR
33	SCREW-STOP
34	WCI Q49587
35	5300168328 Frigidaire Refrigerator Liner Repair Epoxy Tape
36	AIR DUCT BREATHER
38	WCI Q502207
39	WCI Q502063
40	WCI Q15142
41	WCI Q22072
42	WCI Q15141
43	WCI Q301296
44	RECEPTACLE, STRAIGHT, 1/4“ BLADE TERMINAL (PKG. OF 12)
44A	RECEPTACLE, STRAIGHT, FOR 3/16“ BLADE TERM. (PKG. OF 12)
44B	RECEPTACLE, STRAIGHT, FOR 5/16“ BLADE TERM. (PKG. OF 12)
45	WCI F84893
