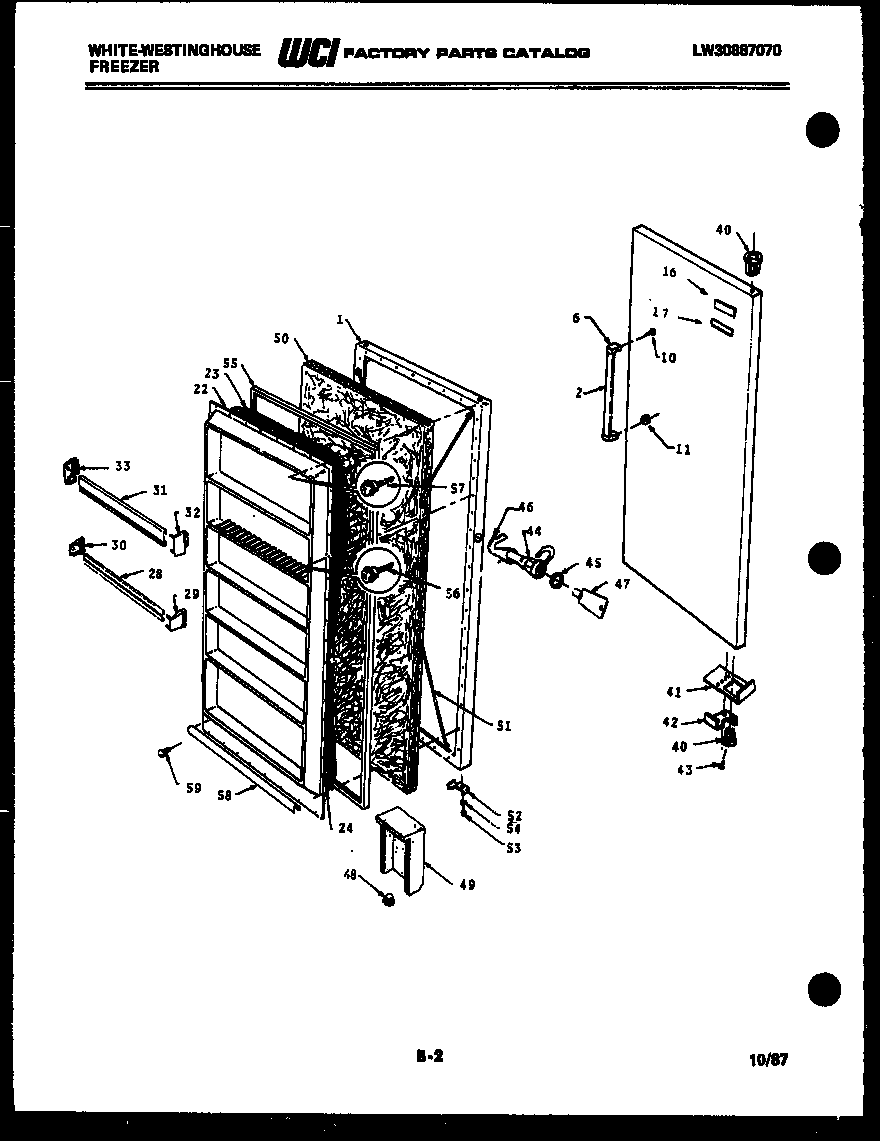

FU211JRW2 02 – DOOR PARTS

Products

Position	Product
1	WCI F119929-P
2	WCI F124665
6	END CAP, BOTTOM
6	WCI F124647
11	131168200 Frigidaire Dryer Screw
16	PLATE
17	INSERT
18	TAPE (NON-ILLUSTRATED)
22	WCI F124704-64
23	INSULATION, DIKES
31	FRONT
32	WCI F112630
33	WCI F112631
40	WCI F84893
40	297006800 Frigidaire Refrigerator Bearing Hinge
41	BRACKET-DOOR STOP
42	WCI F124623
43	SCREW-STOP
44	WCI F300788
45	WASHER
46	WCI F128903
47	297147700 Frigidaire Freezer Plastic Door Key
49	AIR DUCT BREATHER
50	WCI F126806
51	WIRE ADJUSTING
52	WCI F57880
53	SCREW, BRACKET (2)
54	WASHER BRACKET (2)
56	216858001 Frigidaire Refrigerator Screw
57	SCREW-PANEL
58	WCI F99438
59	5303922007 Frigidaire Refrigerator Clip,Pkg 0F 24
