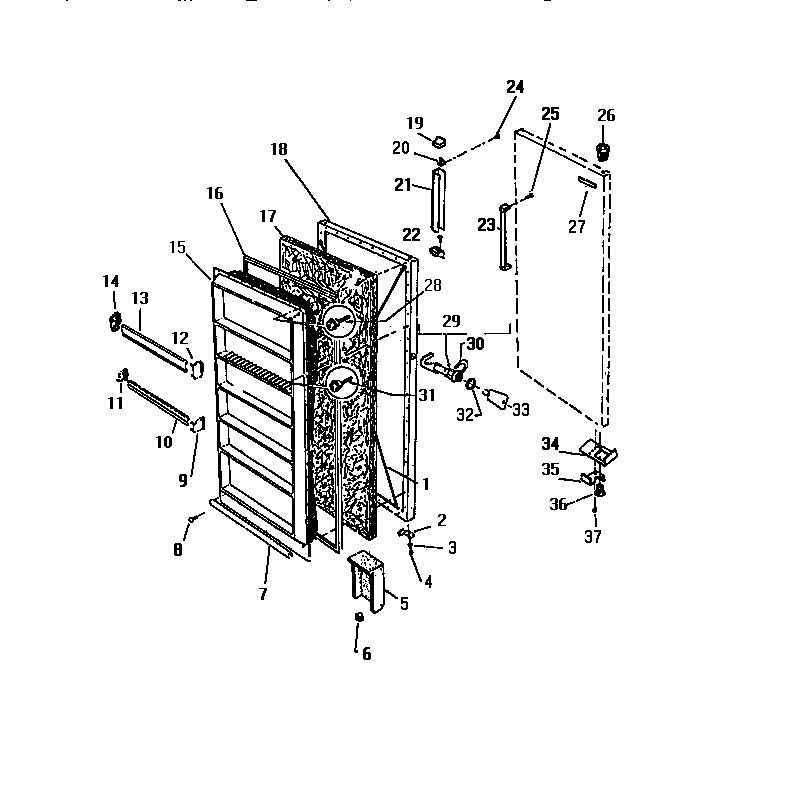

| 1 | WCI F57688-24 |
| 2 | WCI F57880 |
| 3 | WASHER BRACKET (2) |
| 4 | SCREW, BRACKET (2) |
| 5 | AIR DUCT BREATHER |
| 7 | WCI F99438 |
| 8 | 5303922007 Frigidaire Refrigerator Clip,Pkg 0F 24 |
| 12 | WCI F112630 |
| 13 | FRONT |
| 14 | WCI F112631 |
| 15 | WCI F124709-64 |
| 17 | WCI F116277 |
| 18 | WCI F119929-64 |
| 19A | END CAP, BOTTOM |
| 19 | WCI F124647 |
| 20 | RETAINER |
| 21 | WCI F119932-1 |
| 22 | SCREW (2) |
| 24 | 131168200 Frigidaire Dryer Screw |
| 25 | WCI F97614 |
| 27 | WCI G177290 |
| 28 | SCREW (16) |
| 29 | LOCK COMPRESSOR |
| 30 | CLIP, LOCK |
| 31 | SCREW (24) |
| 32 | WASHER |
| 33 | 297147700 Frigidaire Freezer Plastic Door Key |
| 34 | BRACKET-DOOR STOP |
| 35 | STO DOOR |
| 36 | WCI F84893 |
| 37 | SCREW-STOP |
