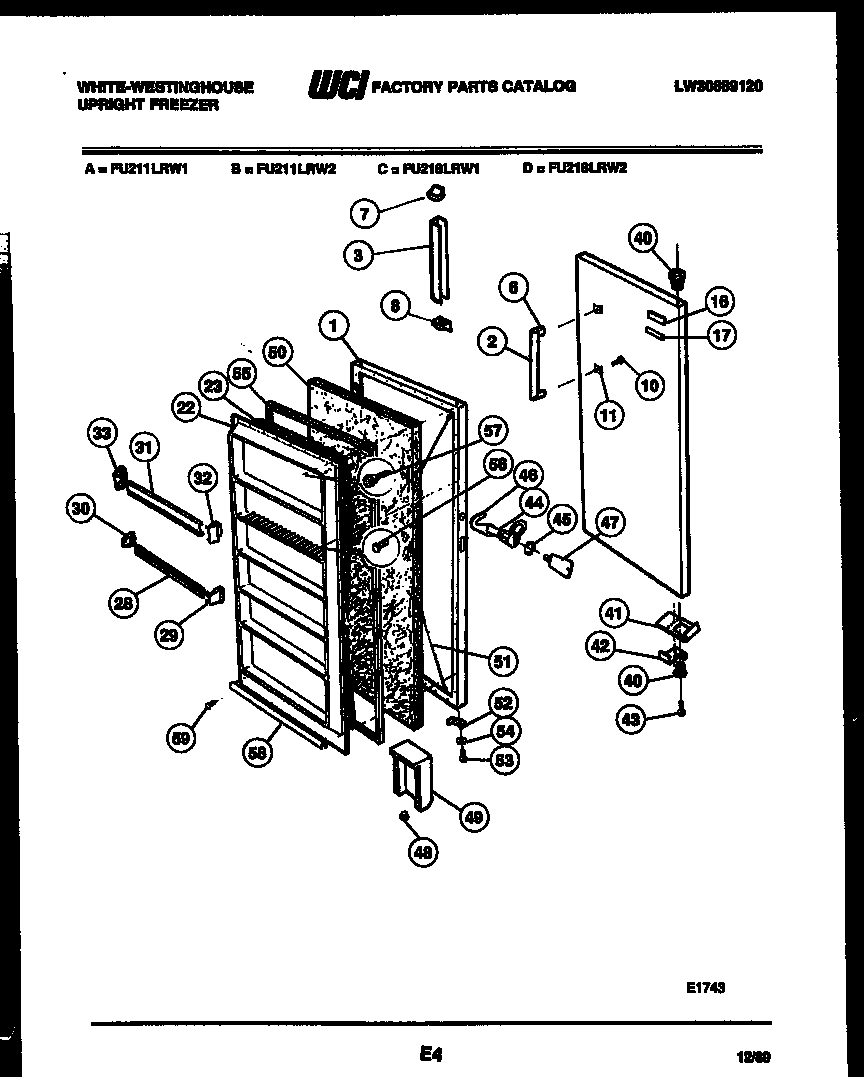

FU218LRW2 03 – DOOR PARTS

Products

Position	Product
1	PANEL
3	WCI 3201007
7	WCI F124647
8	END CAP, BOTTOM
16	PLATE
17	INSERT
22	WCI R000901067
23	INSULATION (CUT TO SIZE)
31	WCI 3201008
32	END CAP-RH (5)
33	WCI 09948971
40	297006800 Frigidaire Refrigerator Bearing Hinge
40A	WASHER
41	BRACKET-DOOR STOP
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI G190358
45	WASHER
46	WCI 3202005
47	297147700 Frigidaire Freezer Plastic Door Key
49	WCI F000128421
50	INSULATION-BULK
51	WIRE, DOOR ADJUSTMNT
52	WCI 05879859
53	SCREW, BRACKET (2)
54	WASHER, PLAIN, DOOR BRACKET
56	216858001 Frigidaire Refrigerator Screw
57	WCI 08009384
58	WCI 08016356
59	5303212828 Frigidaire Refrigerator Primary Clip
