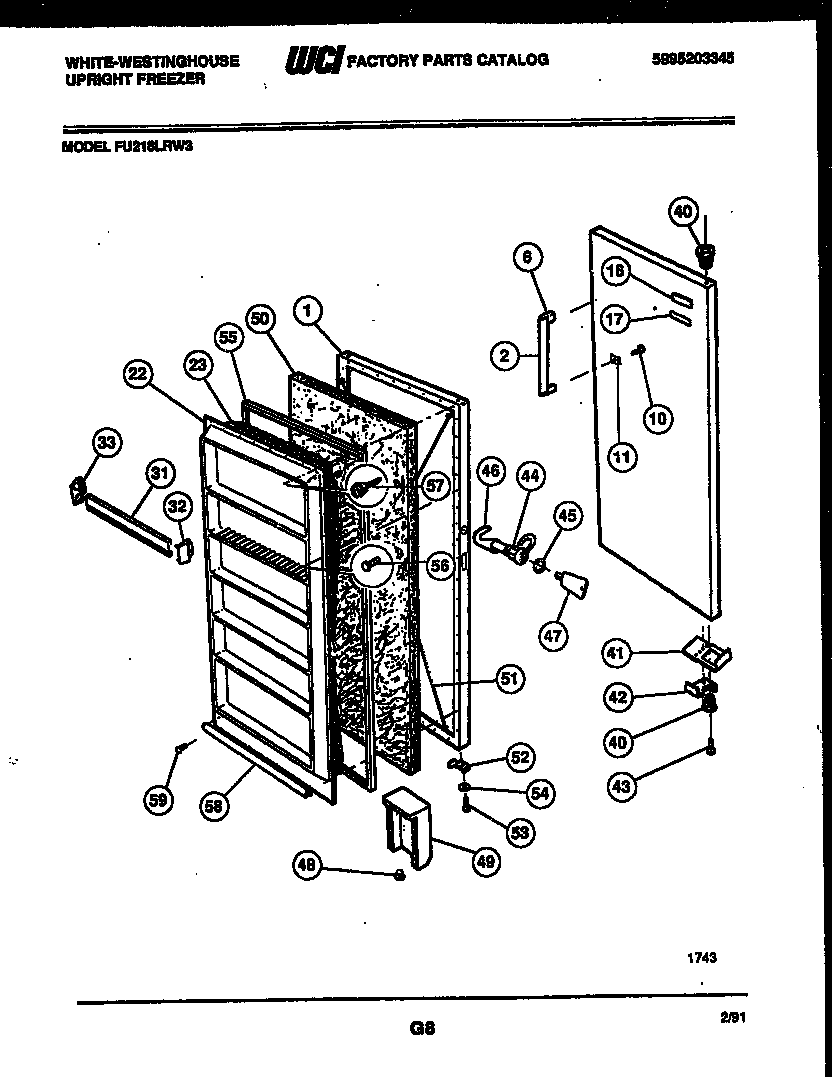

FU218LRW3 02 – DOOR PARTS

Products

Position	Product
1	PANEL
2	WCI 3201007
6A	HANDLE END CAP-BOTTOM
6	HANDLE END CAP-TOP
10	216858001 Frigidaire Refrigerator Screw
11	131168200 Frigidaire Dryer Screw
16	WCI R000901066
17A	TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
17	INSERT
22	WCI 5300901067
23	INSULATION (CUT TO SIZE)
31	WCI 3201008
32	WCI 5309948970
33	WCI 09948971
40A	WCI 5306593364
40	297006800 Frigidaire Refrigerator Bearing Hinge
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5300190358
45	Washer-sealing
46	WCI 3202005
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5300128421
50	WCI 530300739
51	WIRE, DOOR ADJUSTMNT
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
57	WCI 08009384
58	WCI 5308016356
59	5303212828 Frigidaire Refrigerator Primary Clip
